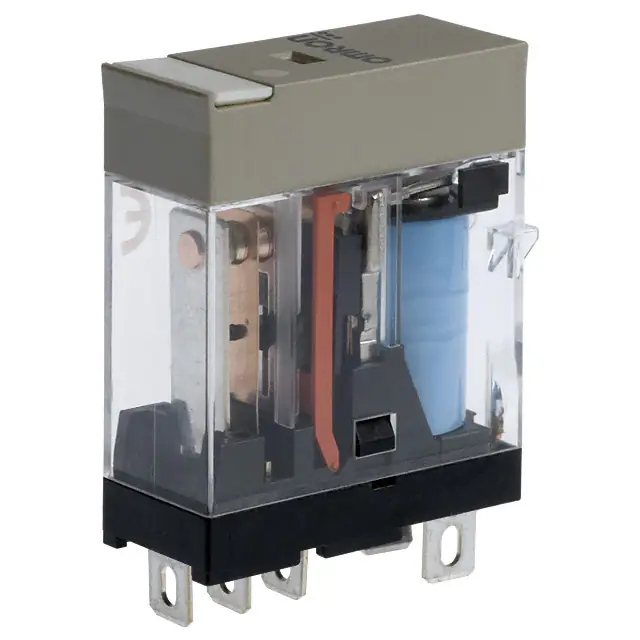

  • Omron G2R-1-SN AC120(S) Power Relays
    • Omron G2R-1-SN AC120(S) Power Relays

    G2R-1-SN AC120(S)

    Omron

    Please submit an RFQ or call 800-526-5376.

    This item is out of stock. Please submit an RFQ or call 800-526-5376 for pricing and delivery.

    Request a Quote
    Technical Help

    Product Description

    Description: Power Relays • Coil Voltage: 120 VAC • Contact Configuration: 1C SPDT • Contact Current: 10 A • Mounting Type: Socketable • Coil Type: Non Latching • Termination Style: Plug In, Quick Connect - 0.187" (4.7mm) • Features: Lighted Indicator

          Product Information       Resources
    ManufacturerOmron
    Product Category Relays
    Product Sub Category Power Relays
    SeriesG2R-_-S (S) Series

      Download Datasheet

      RoHS Compliant
          Specifications
    Product Attribute
    		Attribute Value
    Mounting TypeSocketable
    Coil Voltage120 VAC
    Contact Configuration1C SPDT
    Contact Current10 A
    Switching Voltage440VAC, 125VDC - Max
    Coil Current7.5 mA
    Coil TypeNon Latching
    FeaturesLighted Indicator
    Termination StylePlug In, Quick Connect - 0.187" (4.7mm)
    Seal Rating-
    Coil Insulation-
    Must Operate Voltage96 VAC
    Must Release Voltage36 VAC
    Operate Time15 ms
    Release Time10 ms
    Operating Temperature-40°C ~ 70°C
    Contact Material-
          Series Features
    General-purpose Relay G2R-[]-S
    Series Description: Slim and Space-saving Power Plug-in Relay
    • Lockable test button models now available.
    • Built-in mechanical operation indicator.
    • Provided with nameplate.
    • AC type is equipped with a coil-disconnection self-diagnostic function (LED type).
    • High switching power (1-pole: 10 A).
    • Environment-friendly (Cd, Pb free).
    • Wide range of Sockets also available
