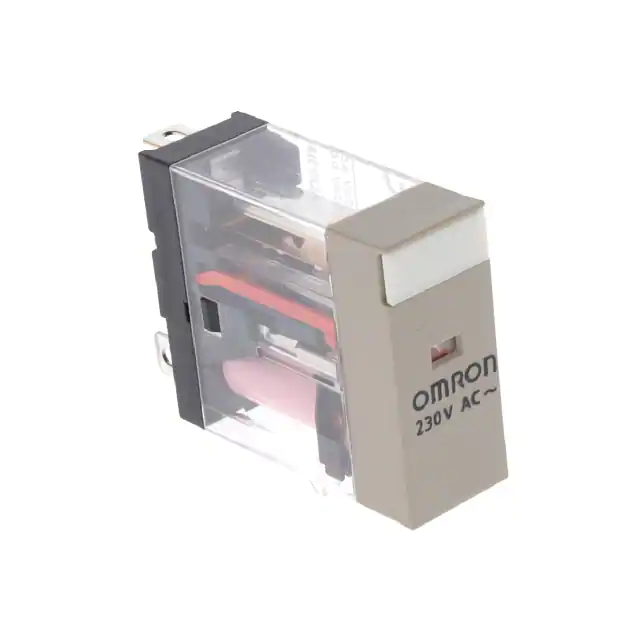

__81827.1685920979.png?c=1 "Omron G2R-1-S AC230(S) Power Relays")
__81827.1685920979.png?c=1 "Omron G2R-1-S AC230(S) Power Relays")
Product Description
Description: Power Relays • Coil Voltage: 230VAC • Contact Configuration: 1C SPDT • Contact Rating (Current): 10 A • Mounting Type: Socketable • Coil Type: Non Latching • Termination Style: Plug In, Quick Connect - 0.187" (4.7mm) • Features: -
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Mounting Type | Socketable |
| Coil Voltage | 230VAC |
| Contact Configuration | 1C SPDT |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 440VAC, 125VDC - Max |
| Coil Current | 3.8 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 184 VAC |
| Must Release Voltage | 69 VAC |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | - |
| Series Features |
| General-purpose Relay G2R-[]-S |
| Series Description: Slim and Space-saving Power Plug-in Relay |
|
