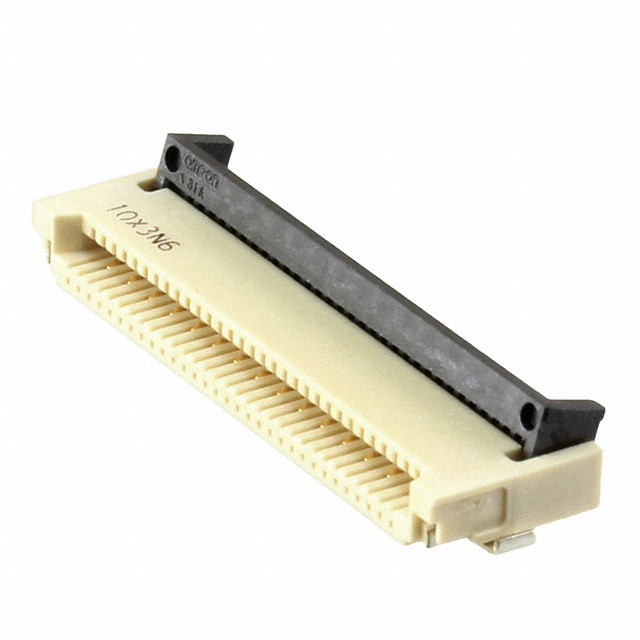

-1515-1B__71807.1692575998.jpg?c=1 "Omron XF3M(1)-1515-1B FFC, FPC (Flat Flexible) Connectors")
-1515-1B__71807.1692575998.jpg?c=1 "Omron XF3M(1)-1515-1B FFC, FPC (Flat Flexible) Connectors")
Product Description
Description: FFC, FPC (Flat Flexible) Connectors • Flat Flex Type: FFC, FPC • Mounting Type: Surface Mount, Right Angle • Connector/Contact Type: Contacts, Top and Bottom • Number of Positions: 15 • Pitch: 0.039" (1.00mm) • Termination: Solder • FFC, FCB Thickness: 0.30mm • Locking Feature: Rotary Lock, Backlock
| Product Information | Resources |
|
|
| Specifications |
| Product Attribute | Attribute Value |
| Number of Positions | 15 |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Top and Bottom |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.079" (2.00mm) |
| Pitch | 0.039" (1.00mm) |
| Locking Feature | Rotary Lock, Backlock |
| Termination | Solder |
| Cable End Type | Tapered |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Actuator Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Features | Solder Retention |
| Voltage Rating | 50V |
| Operating Temperature | -30°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
