Product Description
Description: Dip Switch, Piano, 4 Positions, 24VDC, 25mA, SPST, Flush, Recessed Actuator
| Product Information | | Resources |
| Manufacturer | Omron | | Product Category | Switches | | Product Sub Category | Dip Switch | | Series | A6TR Series |
| | |
Product Attribute
| Attribute Value
|
| Circuit | SPST |
| Number of Positions | 4 |
| Current Rating (Amps) | 25mA |
| Voltage Rating | 24VDC |
| Actuator Type | Piano |
| Actuator Level | Flush, Recessed |
| Contact Finish | Gold |
| Height Above Board | 0.197" (5.00mm) |
| Mounting Type | Through Hole, Right Angle |
| Termination Style | PC Pin |
| Pitch | 0.100" (2.54mm), Full |
| Washable | No |
| Operating Temperature | -20°C ~ 70°C |

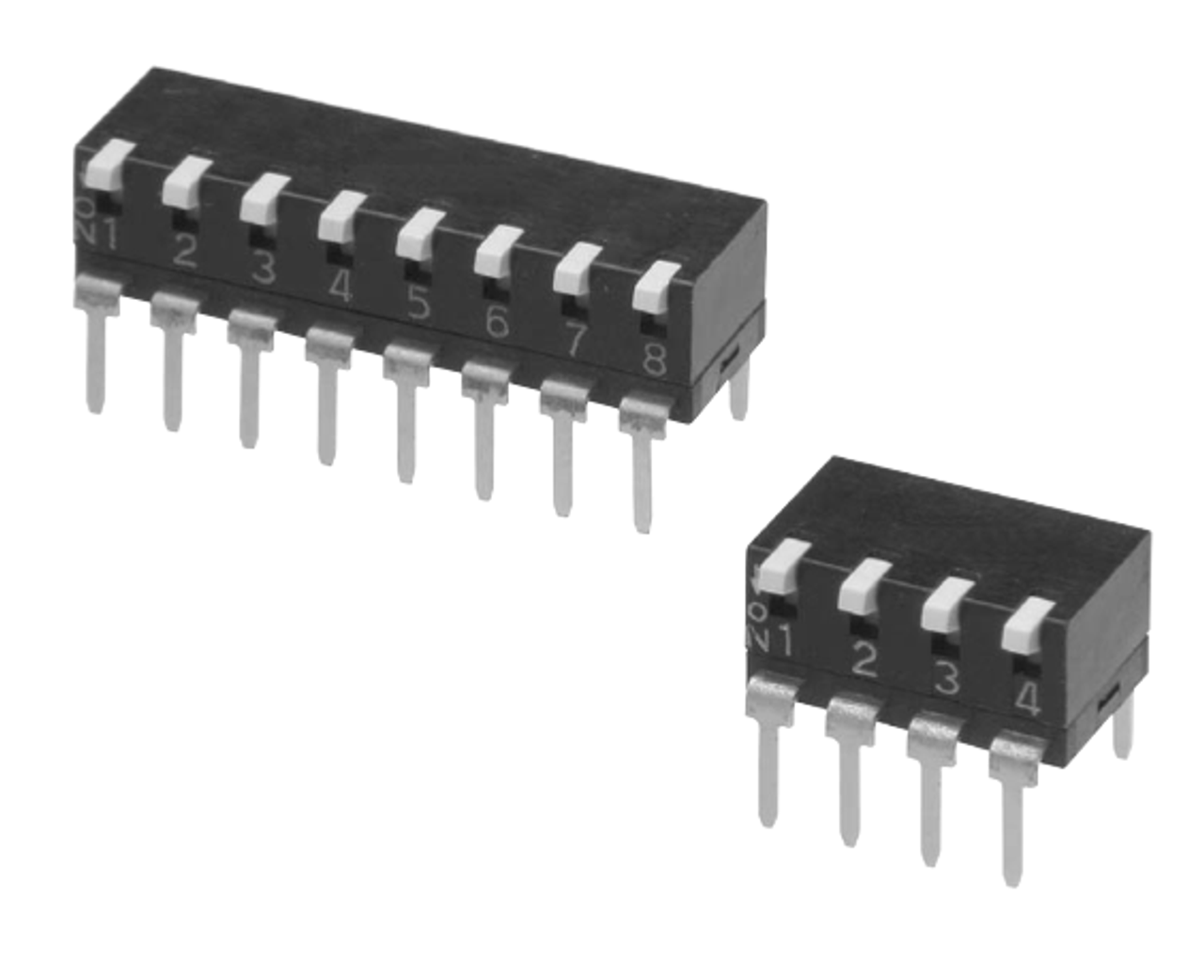

| A6TR Series Piano DIP Switch |
| Series Description: Low-profile Piano DIP Switches with a Standard Pitch of 2.54 mm for Continuous Mounting. |
- Low-profile design with a height of only 5 mm and a 2.54-mm pitch for continuous mounting.
- Models available with 2, 4, 6, 8, or 10 poles..
- Gold-plated twin contacts with slide-type selfcleaning mechanism for high reliability
|
