Product Description
Description: Signal Relay • Coil Voltage: 3 VDC • Contact Configuration: 2C DPDT • Current: 1 Amp • Function: Single Side Stable • Mounting: PC Board • Option: Standard Term
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Coil Voltage | 3 VDC |
| Contact Configuration | 2C DPDT |
| Current | 1 Amp |
| Function | Single Side Stable |
| Mounting | PC Board |
| Option | Standard Term |
| Contact Material | Silver alloy with gold alloy overlay |
| Minimum Contact Ratings | 10 m VDC, 10?A |
| Initial Contact Resistance | 100 m ? max. (initial) |
| Operate Time [Set Time] (Excluding bounce) | Approx. 2 ms [2ms] |
| Release Time [Reset Time] (Excluding bounce) | Approx. 1 ms [2ms] (Without diode) |
| Insulation Resistance | 1000 M ohms at 500 VDC |
| Withstanding Voltage | Between open contacts: 1000 VAC (for one minute) 1500 V surge (10x160 ?s) Between adjacent contact: 1000 VAC (for one minute) 1500 V surge (10x160 ?s) Between coil and contacts: 1500 VAC (for one minute) , 2500 V surge (2x10 ?s) |
| Shock Resistance | 735 m/s2 (75G) (misoperation) 980 m/s2 (100G) (destructive failure) |
| Vibration Resistance | 10 to 55 Hz, double amplitude 3 mm(196 m/s2) (misoperation) 10 to 55 Hz, double amplitude 5 mm(294 m/s2) (destructive failure) |
| Ambient Temperature | -40 to +85 °C -40 to +70 °C(Low Power consumption type) |
| Coil Temperature Rise | 13 °C / 100mW, 18 °C / 140mW, 25 °C |
| Series Features |
| UC2/UD2 Series |

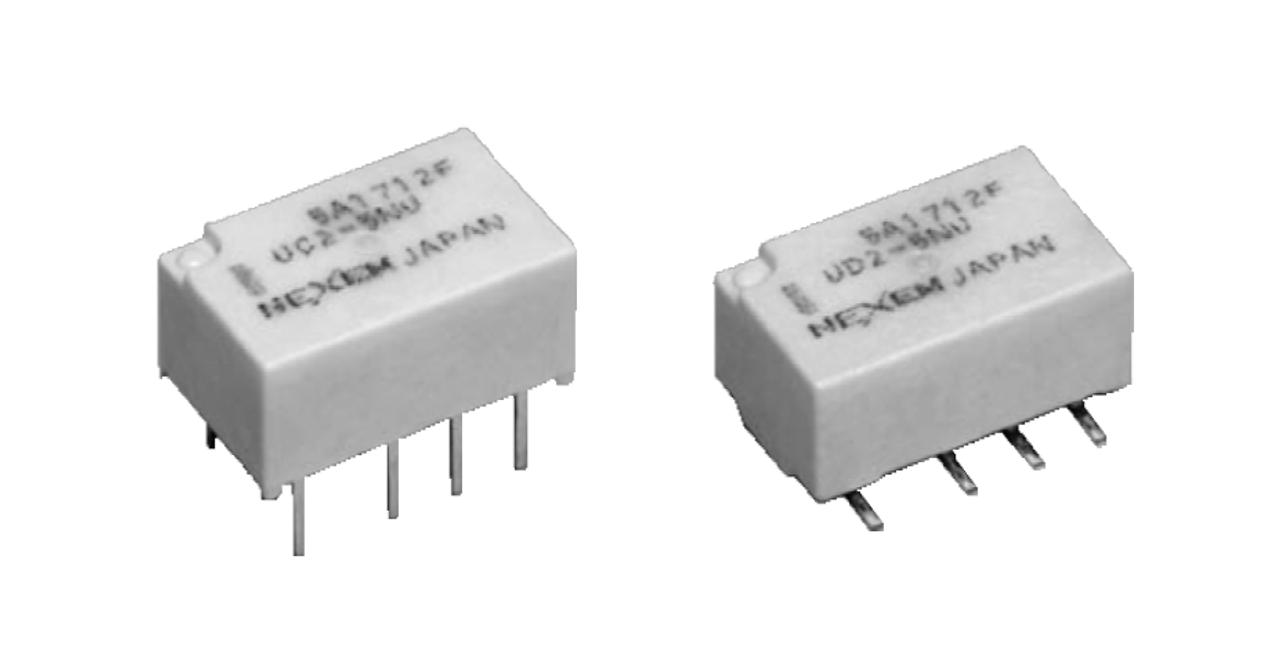

| Series Description: NEXEM UC2/UD2 relay is a new generation minature signal relay, super-comact and flat. |
| Applications: Electronic switching systems, PBX, Terminal equipment, Telephone systems |
|
