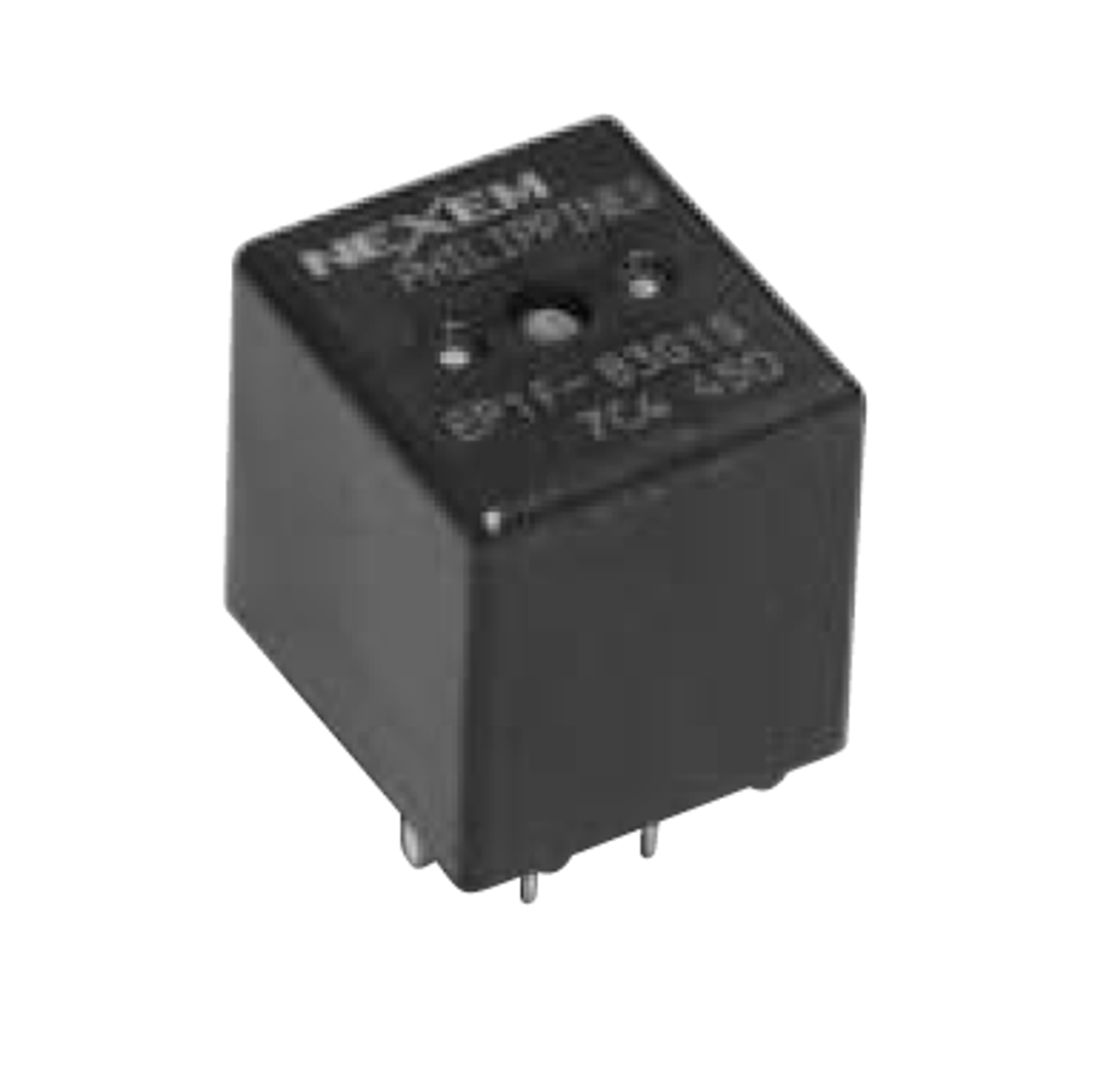

    EP1-3N1S

    Manufacturer NEC / World Products
    Manufacturer Product Number EP1-3N1S

    This item is out of stock. Please submit an RFQ or call 800-526-5376 for pricing and delivery.

    Product Description

    Description: Power Relay • Coil Voltage: 12 VDC • Contact Configuration: 1C SPDT • Current: 25 Amps • Function: Single Side Stable • Mounting: PC Board • Sealed: Yes • Coil Resistance: 225 Ohm

          Product Information       Resources
    ManufacturerNEC - World Products
    Product Category Relay
    Product Sub Category Power Relay
    SeriesEP1 Series

      Download Datasheet

      RoHS Compliant
          Specifications
    Product Attribute
    		Attribute Value
    Coil Voltage12 VDC
    Contact Configuration1C SPDT
    Current25 Amps
    FunctionSingle Side Stable
    MountingPC Board
    SealedYes
    Coil Resistance225 Ohm
    Contact MaterialSilver oxide complex alloy
    Operate Time (Excluding bounce)5 ms typical (at Nominal Voltage)
    Release Time (Excluding bounce)2 ms typical (at Nominal Voltage, without diode)
    Nominal Operating Power0.48 W/ 0.64 W (at 12 VDC)
    Insulation Resistance100 M ohms at 500 VDC
    Withstanding Voltage500 VAC (for 1 minute)
    Shock Resistance98 m/s2 (misoperation)
    980 m/s2 (destructive failure)
    Vibration Resistance10 to 300 Hz, 43 m/s2(Misoperation)
    10 to 500 Hz, 43 m/s2, 200 hours(Destructive Failure)
    Ambient Temperature-40 to +85 °C (?40 to +185 °F)
          Series Features
    EP1 Series
    Series Description: EP1 series is printed-circuit-board-mount-type and the most suitable for various motor controls in automotive applications pursuing quality and performance.
    • For motor reversible control
    • Two types of contact according to switching current (Standard type: 25 A max, High current type: 30 A max.)
    • PC board mounting
    • Flux tight housing
