| Manufacturer | Metz Connect |
| Manufacturer Product Number | 31523112 |
| Description | TB Header; 12-pos; 3.50mm; RA; THR; 10A; 300V; Closed; Codeable AltFace T&R; PA46 |
| Datasheet | Download Datasheet |

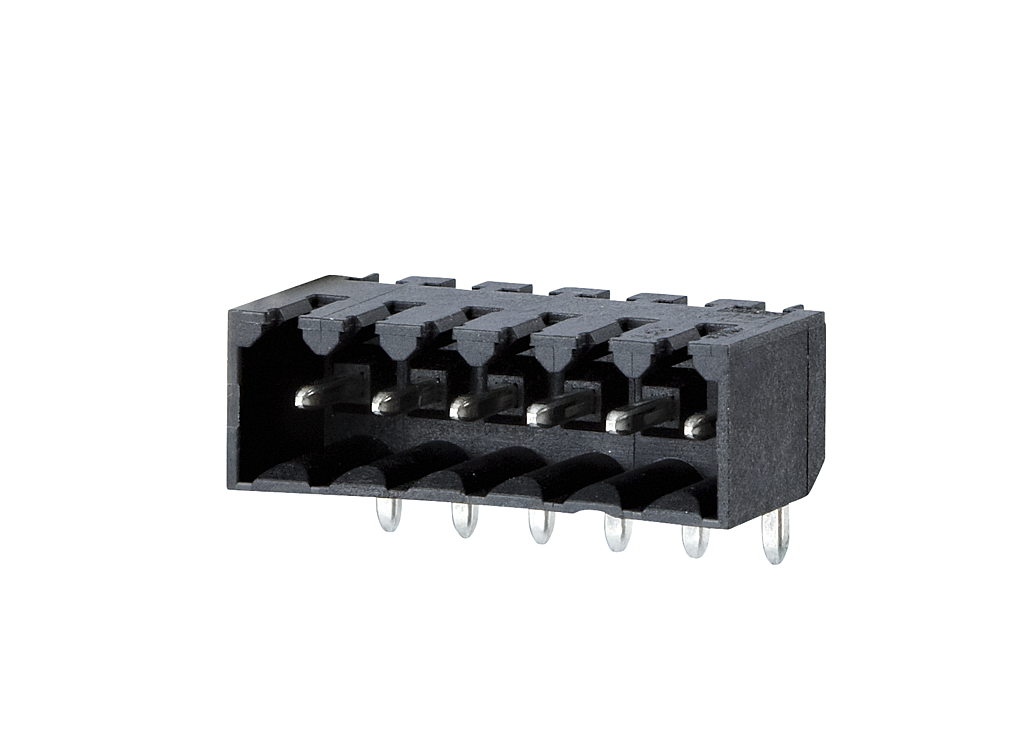

The Metz Connect 31523112 is a 12-position right-angle THR-solderable terminal block header on a 3.50 mm (0.138") pitch, with closed ends. It is UL rated 10 A at 300 V, and IEC rated 10 A at 320 V (OVC III, PD 2).
The housing is black polyamide PA46, rated UL 94 V-0, insulation group CTI 400, IP10 protection. Contact pins are copper-magnesium (CuMg), copper + tin plated. Solder pins are 3.2 mm long and suit reflow soldering. It operates from -40°C to 105°C.
Features: codeable, alternative face, tape & reel available. Approvals: cULus (UL file E121004).
| Category | |
| Manufacturer | Metz Connect |
| Part Status | End-of-Life |
| Alternate Part Numbers | PW06312HBBN |
| Number of Positions | 12 |
| Pitch | 3.50 mm (0.138") |
| Mounting Type | Through Hole Reflow (THR) |
| Orientation | Right Angle (90°) |
| Header Ends | Closed |
| Current Rating | 10 A |
| Voltage Rating | 300 V |
| IEC Current Rating | 10 A |
| IEC Voltage Rating | 160 V (OVC III, PD 3), 320 V (OVC III, PD 2), 320 V (OVC II, PD 2) |
| Rated Impulse Voltage | 4 kV |
| Color | Black |
| Housing Material | Polyamide PA46 |
| Flammability Rating | UL 94 V-0 |
| Contact Material | Copper-Magnesium (CuMg), Copper + Tin Plated |
| Solder Pin Length | 3.2 mm |
| Solderability | Reflow |
| Operating Temperature | -40°C to 105°C |
| Protection Rating | IP10 |
| Clearance / Creepage | 2.48 mm |
| Insulation Material Group | CTI 400 |
| Features | Codeable, Alternative Face, Tape & Reel Available |
| UL File | E121004 |
| Approvals | cULus |
