To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Metz Connect |
| Manufacturer Product Number | SR99S01VBNN07G7 |
| Description | Spring TB; 1-position; THR; 90° Entry; Finger PB; 9A; 300V; PPA; Gray; 0.2-1.5 mm² |
| Datasheet | Download Datasheet |

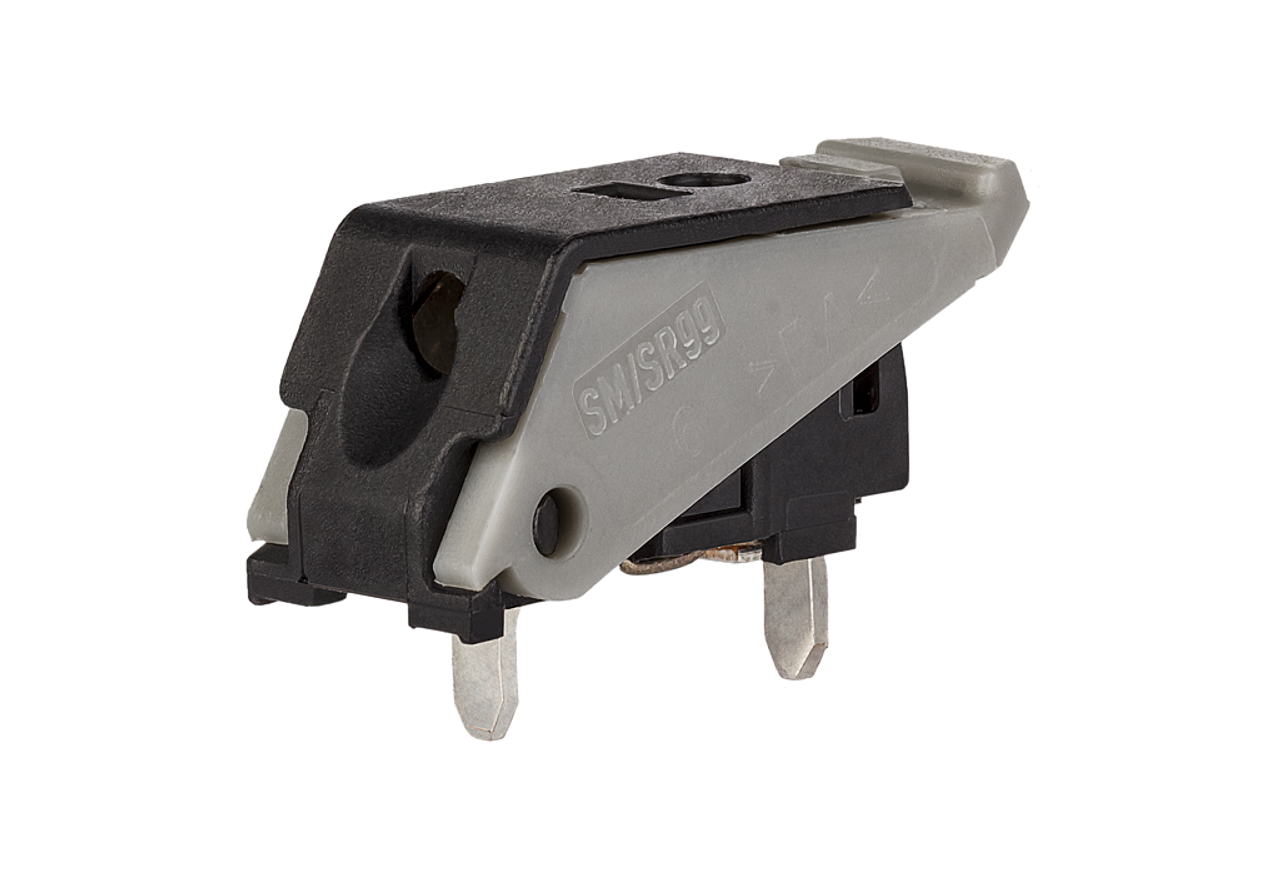

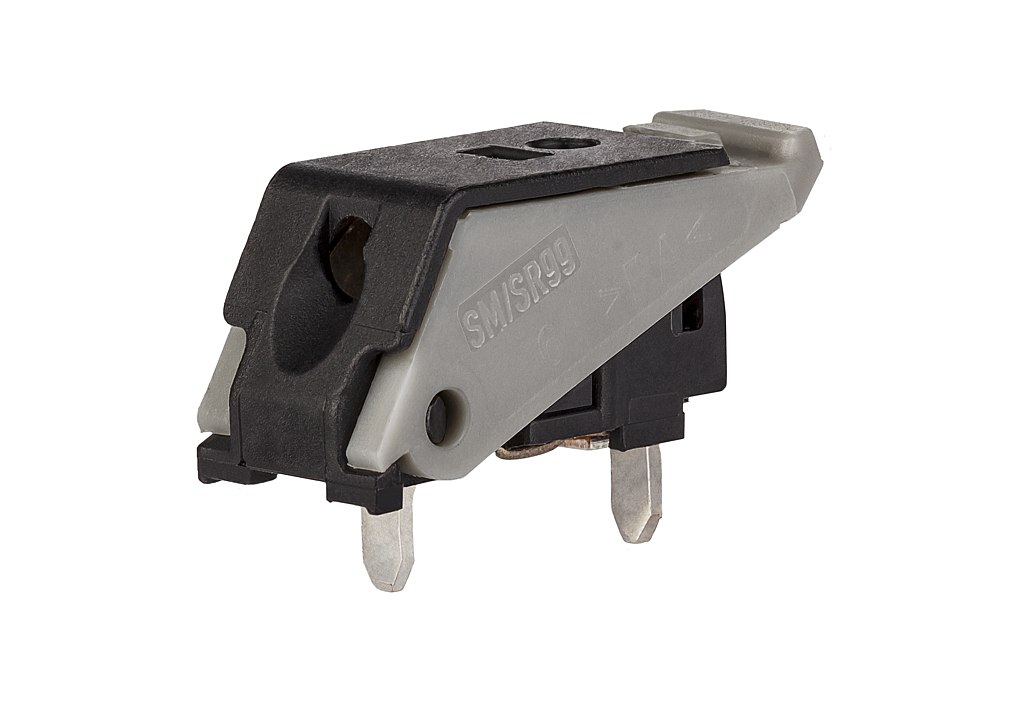

The Metz Connect SR99S01VBNN07G7 is a 1-position THR-solderable spring-clamp PCB terminal block, with horizontal (90°) wire entry. It is UL rated 9 A at 300 V for 24-16 AWG wire, and IEC rated 9 A for 0.2-1.5 mm² wire.
The housing is gray polyphthalamide (PPA), rated UL 94 V-0, insulation group CTI 600, IP20 protection. Wires are held by a spring-steel clamp opened with a finger push-button. Strip wires 7 mm. Contacts are tin bronze (CuSn), tin plated. Solder pins are 2.4 mm long and suit reflow soldering. It operates from -40°C to 105°C.
Features: stackable without loss of poles, double solder pins, test point, wire connection indicator, Ethernet capable, tape & reel available. Approvals: cULus, SEV (UL file E121004).
| Category | |
| Manufacturer | Metz Connect |
| Number of Positions | 1 |
| Block Type | PCB Mount, THR |
| Wire Entry Angle | 90° (Horizontal) |
| Actuation | Finger Push-Button |
| Current Rating | 9 A |
| Voltage Rating | 300 V |
| Wire Range | 24-16 AWG |
| IEC Current Rating | 9 A |
| IEC Wire Range | 0.2-1.5 mm² |
| Strip Length | 7 mm |
| Color | Gray |
| Housing Material | Polyphthalamide (PPA) |
| Flammability Rating | UL 94 V-0 |
| Contact Material | Tin Bronze (CuSn), Tin Plated |
| Spring Material | Spring Steel |
| Operating Temperature | -40°C to 105°C |
| Protection Rating | IP20 |
| Insulation Material Group | CTI 600 |
| Solder Pin Length | 2.4 mm |
| Solderability | Reflow |
| Glow-Wire Rating | GWFI 850°C / GWIT 775°C |
| Features | Stackable Without Loss of Poles, Double Solder Pins, Test Point, Wire Connection Indicator, Ethernet Capable, Tape & Reel Available |
| UL File | E121004 |
| Approvals | cULus, SEV |
