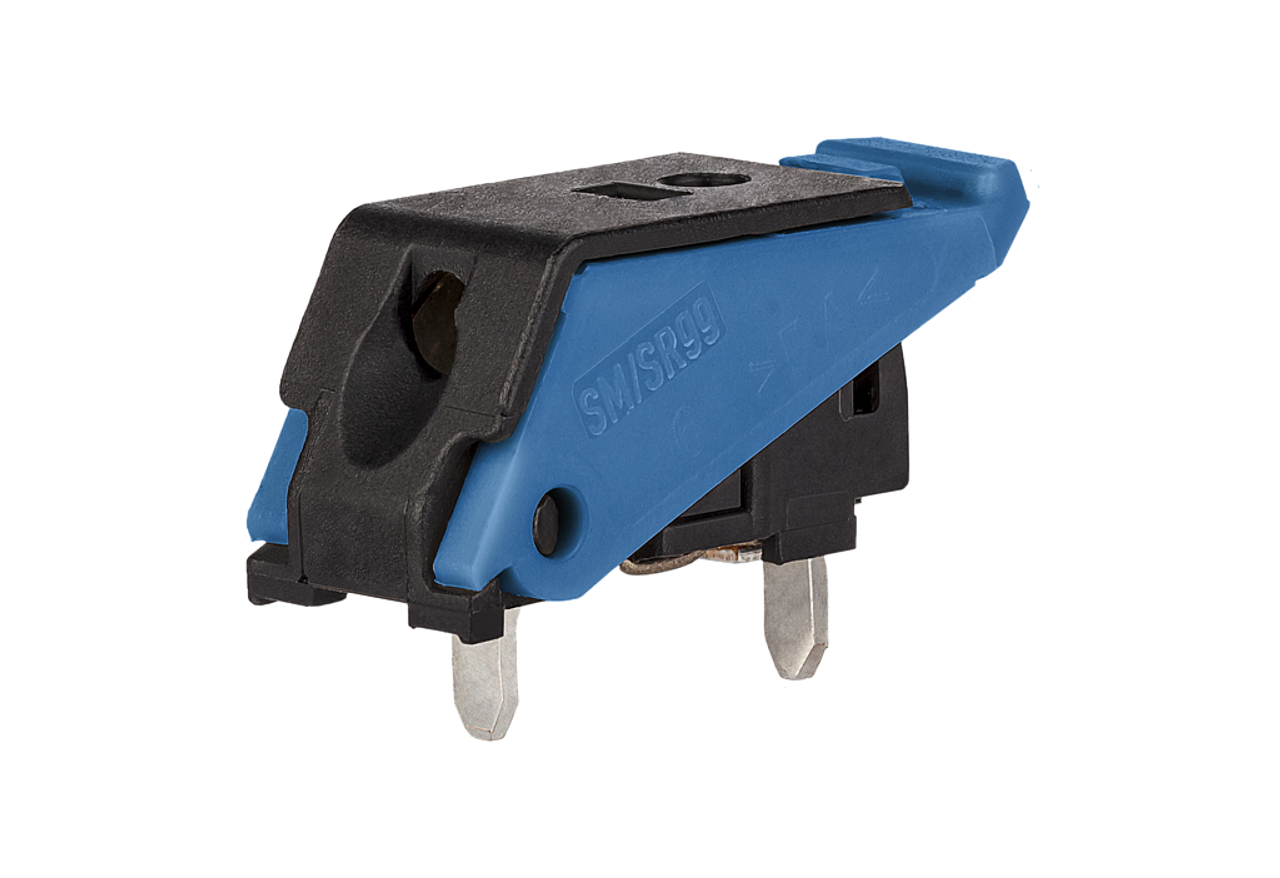

To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
Metz Connect SR99S01VBNN05G7
Manufacturer
Metz Connect
Manufacturer Product Number
SR99S01VBNN05G7
Bulk Pricing
Qty. Price
1
25
100
250
1000
2500
5000
$0.62
$0.45
$0.39
$0.38
$0.36
$0.34
$0.33
Product Description
Spring Clamp Terminal Block • Number of Levels: 1 • Positions Per Level: 1 • Pitch: - • Mating Orientation: Horizontal with Board • Mounting Type: Through Hole • Wire Termination: Screwless - Spring Cage, Tension Clamp • Color: Blue
Product Information Resources
Product Attribute Attribute Value Number of Levels 1 Positions Per Level 1 Pitch - Mating Orientation Horizontal with Board Current 9A Wire Gauge 16-24 AWG Mounting Type Through Hole Wire Termination Screwless - Spring Cage, Tension Clamp Features Push Button Actuated Color Blue Voltage 300 V
SR99SxxVBNN / SR99SxxVWNN -Metz Connect Spring Clamp Terminal Bloc Series Description:
spring clamp terminal block, THR solderable, double solder pins
direction of connection 90°
fittable without loss of poles
Tape & Reel packaging possible
finger push-button
test point and wire connection indicator
Variants: black, creme white, yellow, green, red, blue, orange, gray, brown, white
Product Videos
Custom Field
RoHS Compliant
