Metz Connect SR99S01VBNN02G7
| Manufacturer |
Metz Connect |
| Manufacturer Product Number |
SR99S01VBNN02G7 |
Bulk Pricing
Qty.Price
1
25
100
250
1000
2500
5000
$0.62
$0.45
$0.39
$0.38
$0.36
$0.34
$0.33
Product Description

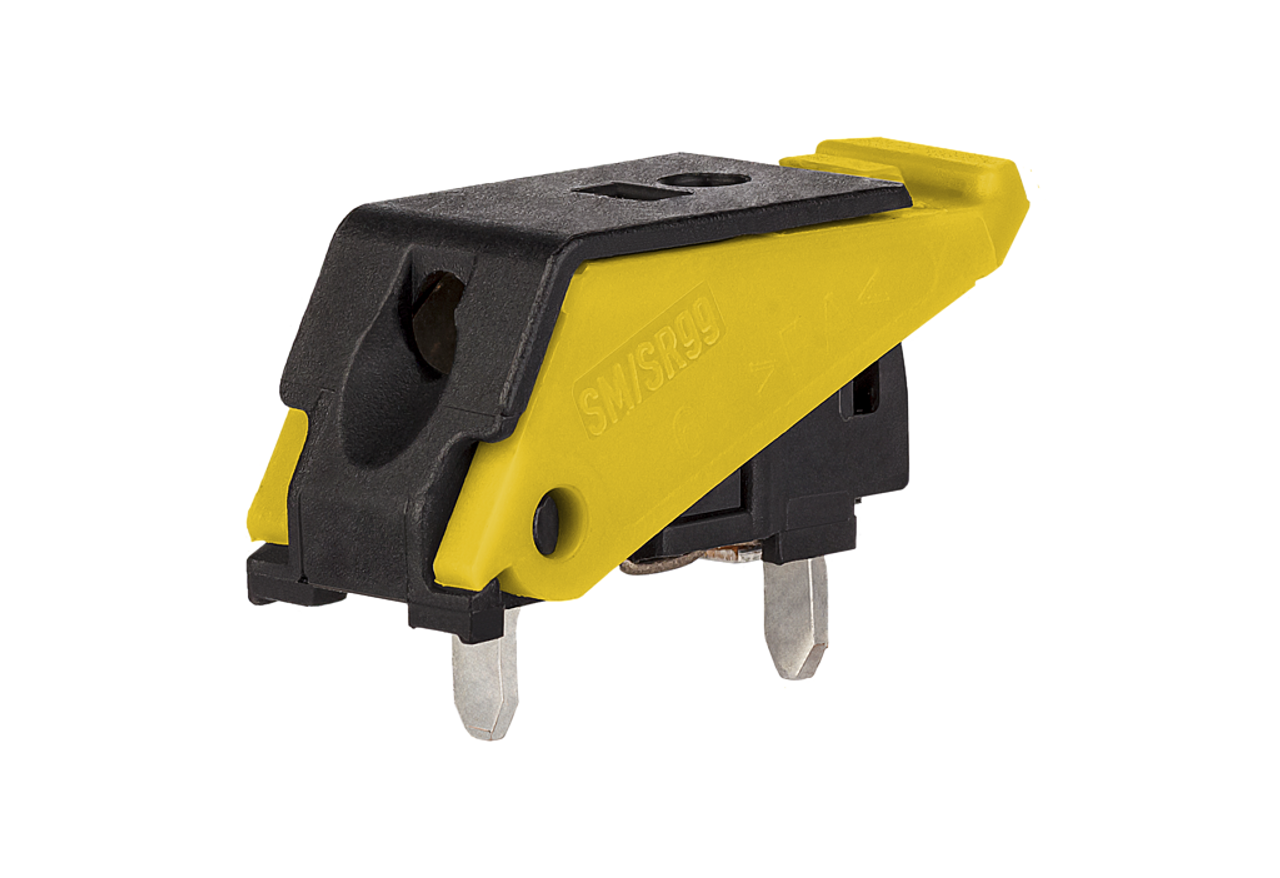

Spring Clamp Terminal Block • Number of Levels: 1 • Positions Per Level: 1 • Pitch: - • Mating Orientation: Horizontal with Board • Mounting Type: Through Hole • Wire Termination: Screwless - Spring Cage, Tension Clamp • Color: Yellow
|
|
| Product Information | | Resources |
Product Attribute
| Attribute Value
|
| Number of Levels | 1 |
| Positions Per Level | 1 |
| Pitch | - |
| Mating Orientation | Horizontal with Board |
| Current | 9A |
| Wire Gauge | 16-24 AWG |
| Mounting Type | Through Hole |
| Wire Termination | Screwless - Spring Cage, Tension Clamp |
| Features | Push Button Actuated |
| Color | Yellow |
| Voltage | 300 V |
| SR99SxxVBNN / SR99SxxVWNN -Metz Connect Spring Clamp Terminal Bloc |
| Series Description: |
- spring clamp terminal block, THR solderable, double solder pins
- direction of connection 90°
- fittable without loss of poles
- Tape & Reel packaging possible
- finger push-button
- test point and wire connection indicator
- Variants: black, creme white, yellow, green, red, blue, orange, gray, brown, white
|
Product Videos
Custom Field
RoHS Compliant
