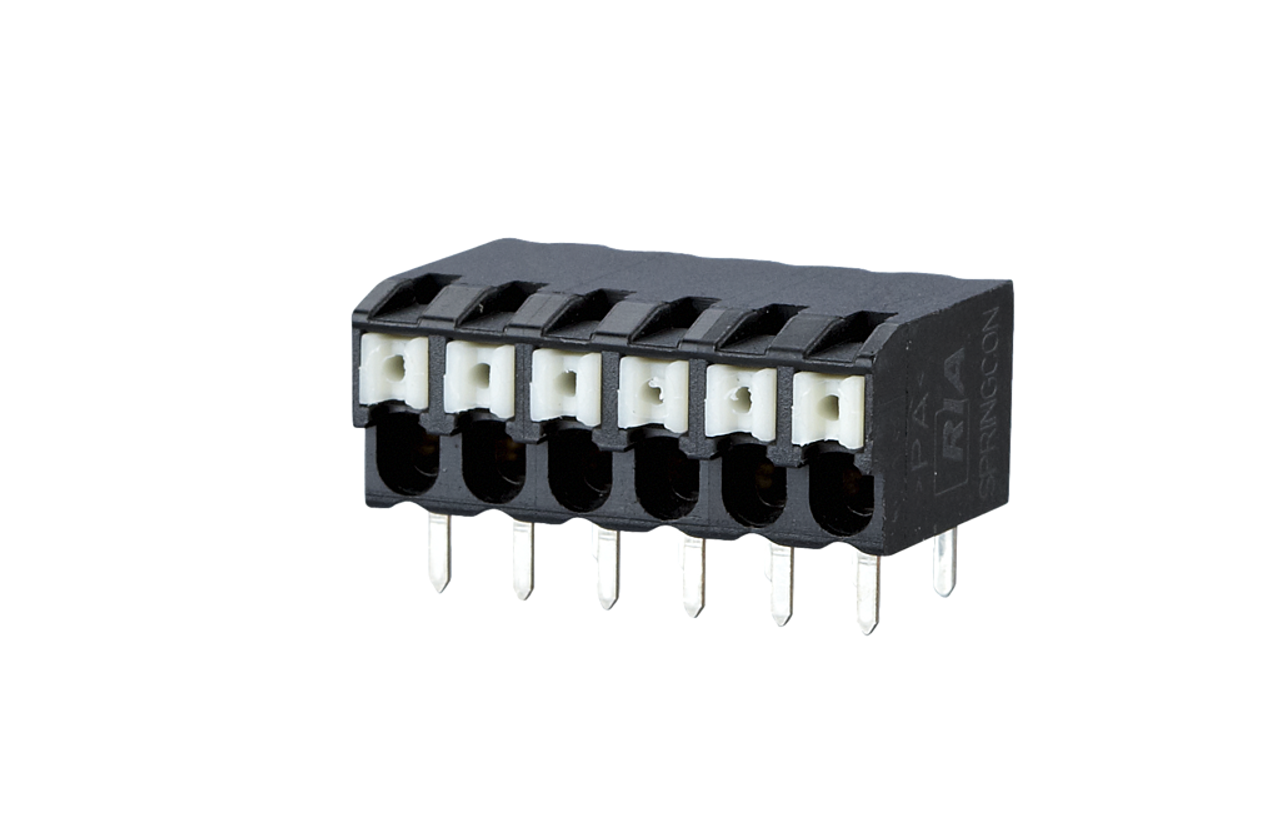

To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
Metz Connect AST2231002
Manufacturer
Metz Connect
Manufacturer Product Number
AST2231002
Bulk Pricing
Qty. Price
1
25
100
250
1000
2500
5000
$5.01
$3.58
$3.13
$3.04
$2.86
$2.72
$2.61
Product Description
Spring Clamp Terminal Block Terminal Block • Mounting : PC Board • Mounting Style: THR • Number Of Poles: 10 • Centerline: 3.50 mm • Direction of connection: 90° • Color: Black
Product Information Resources
Product Attribute Attribute Value Mounting PC Board Mounting Style THR Number Of Poles 10 Centerline 3.50 mm Direction of connection 90° Color Black Connection capacity single-wire 0,08 - 1,5 mm² / AWG 28 - 16 Connection capacity multi-wire 0,08 - 1,5 mm² / AWG 28 - 16 Insulating material class CTI 600 clearance/creepage dist. 2 mm Protection category IP20 Min. insul. strip length 8.5 mm Rated current 13.5 A Upper limit temperature 105 °C Lower limit temperature -40 °C
SR213xxHBNC AST223 -Metz Connect Spring Clamp Terminal Block Series Description:
spring clamp terminal block, THR solderable, double solder pins
centerline 3.50 mm, direction of connection 90°
fittable without loss of poles
color black
Tape & Reel packaging possible
push-button
Product Videos
Custom Field
RoHS Compliant
