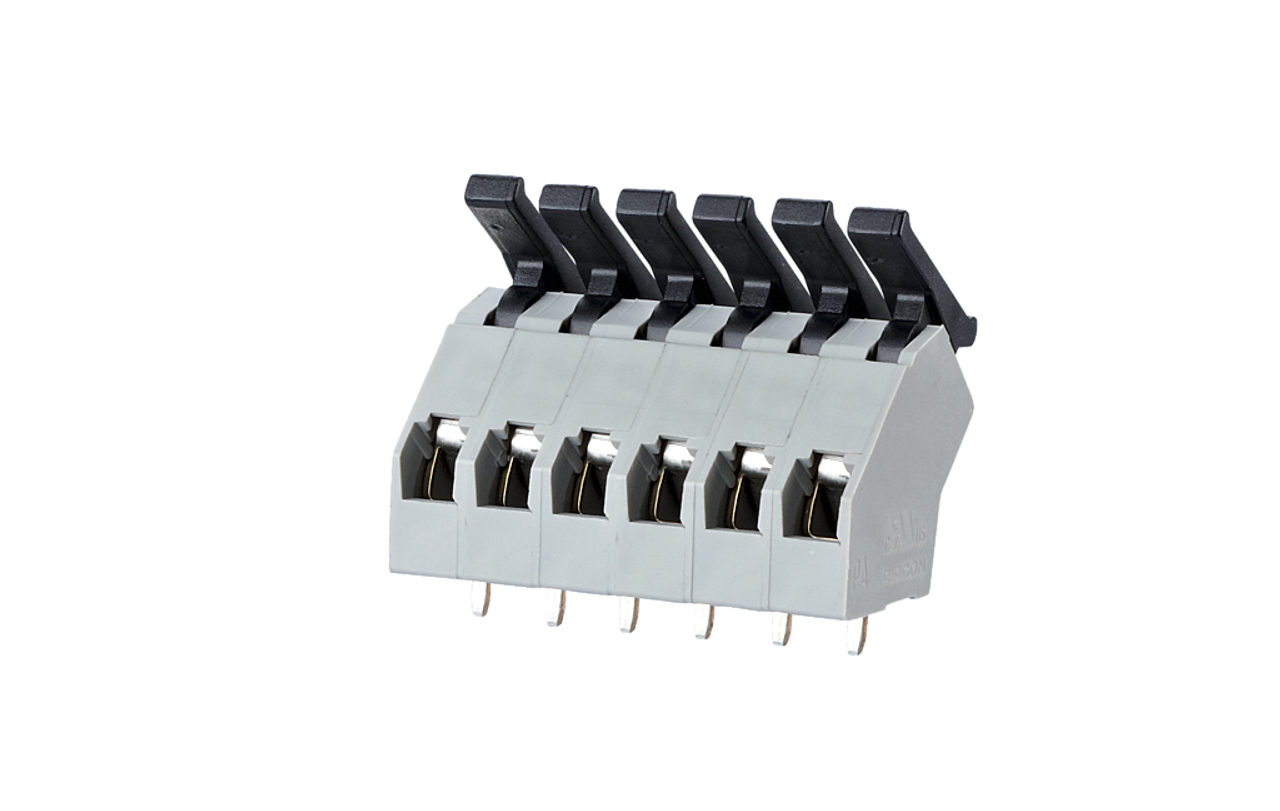

To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
Metz Connect AST1350204
Manufacturer
Metz Connect
Manufacturer Product Number
AST1350204
Bulk Pricing
Qty. Price
1
25
100
250
1000
2500
5000
$2.43
$1.74
$1.52
$1.47
$1.39
$1.32
$1.27
Product Description
Spring Clamp Terminal Block Terminal Block • Mounting : PC Board • Mounting Style: THT • Number Of Poles: 2 • Centerline: 5.00 mm • Direction of connection: 45° • Color: Gray
Product Information Resources
Product Attribute Attribute Value Mounting PC Board Mounting Style THT Number Of Poles 2 Centerline 5.00 mm Direction of connection 45° Color Gray Connection capacity single-wire 0,2 - 2,5 mm² / AWG 28 - 12 Connection capacity multi-wire 0,2 - 2,5 mm² / AWG 28 - 12 Insulating material class CTI 600 clearance/creepage dist. 4 mm Protection category IP20 Min. insul. strip length 6 mm Rated current 19 A Upper limit temperature 105 °C Lower limit temperature -40 °C
ST135xxDDNC AST135 -Metz Connect Spring Clamp Terminal Block Series Description:
spring clamp terminal block, solderable
centerline 5.00 mm, direction of connection 45°
fittable without loss of poles
color gray
eccentric lever
Product Videos
Custom Field
RoHS Compliant
