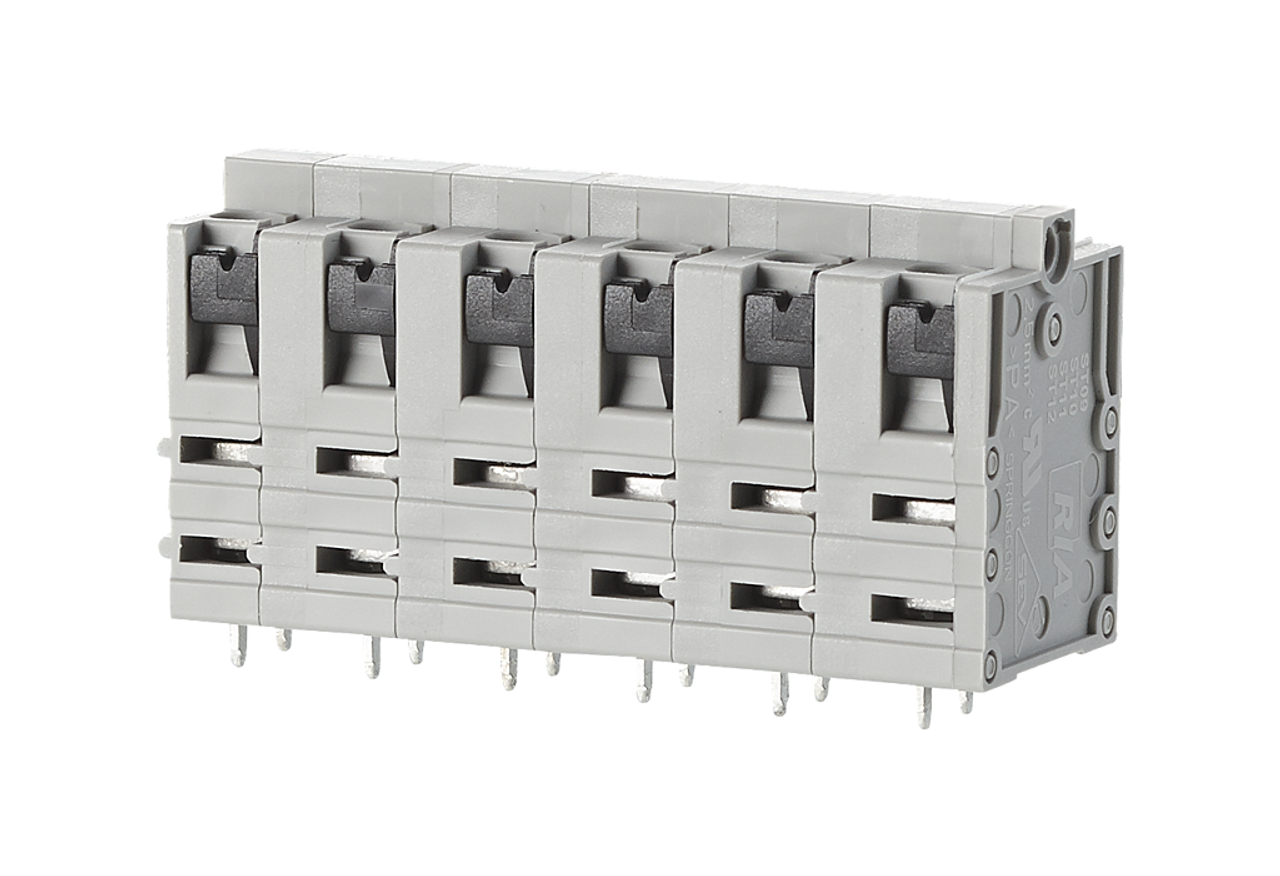

  • Metz Connect AST1080204 Spring Clamp Terminal Block

    • To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.

    Metz Connect AST1080204

    Manufacturer Metz Connect
    Manufacturer Product Number AST1080204

    This item is out of stock. Please submit an RFQ or call 800-526-5376 for pricing and delivery.

    Bulk Pricing

    Qty.Price
    1 25 100 250 1000 2500 5000
    $1.64 $1.17 $1.02 $0.99 $0.94 $0.89 $0.85

    Product Description

    Spring Clamp Terminal Block Terminal Block • Mounting : PC Board • Mounting Style: THT • Number Of Poles: 2 • Centerline: 7.62 mm • Direction of connection: 0° • Color: Gray

          Product Information       Resources
    ManufacturerMetz Connect
    Product Category Spring Clamp Terminal Block
    Product Sub Category
    SeriesST108xxVDNN AST108

      Download Datasheet

      RoHS Compliant
          Specifications
    Product Attribute
    		Attribute Value
    Mounting PC Board
    Mounting StyleTHT
    Number Of Poles2
    Centerline7.62 mm
    Direction of connection0°
    ColorGray
    Connection capacity single-wire0,2 - 2,5 mm² / AWG 28 - 12
    Connection capacity multi-wire0,2 - 2,5 mm² / AWG 28 - 12
    Insulating material classCTI 600
    clearance/creepage dist.7.12 mm
    Protection categoryIP20
    Min. insul. strip length15 mm
    Rated current16 A
    Upper limit temperature105 °C
    Lower limit temperature-40 °C
          Series Features
    ST108xxVDNN AST108 -Metz Connect Spring Clamp Terminal Block
    Series Description:
    • spring clamp terminal block, solderable, double solder pins
    • centerline 7.62 mm, direction of connection vertical 0°
    • color gray
    • push-button, double solder pins
