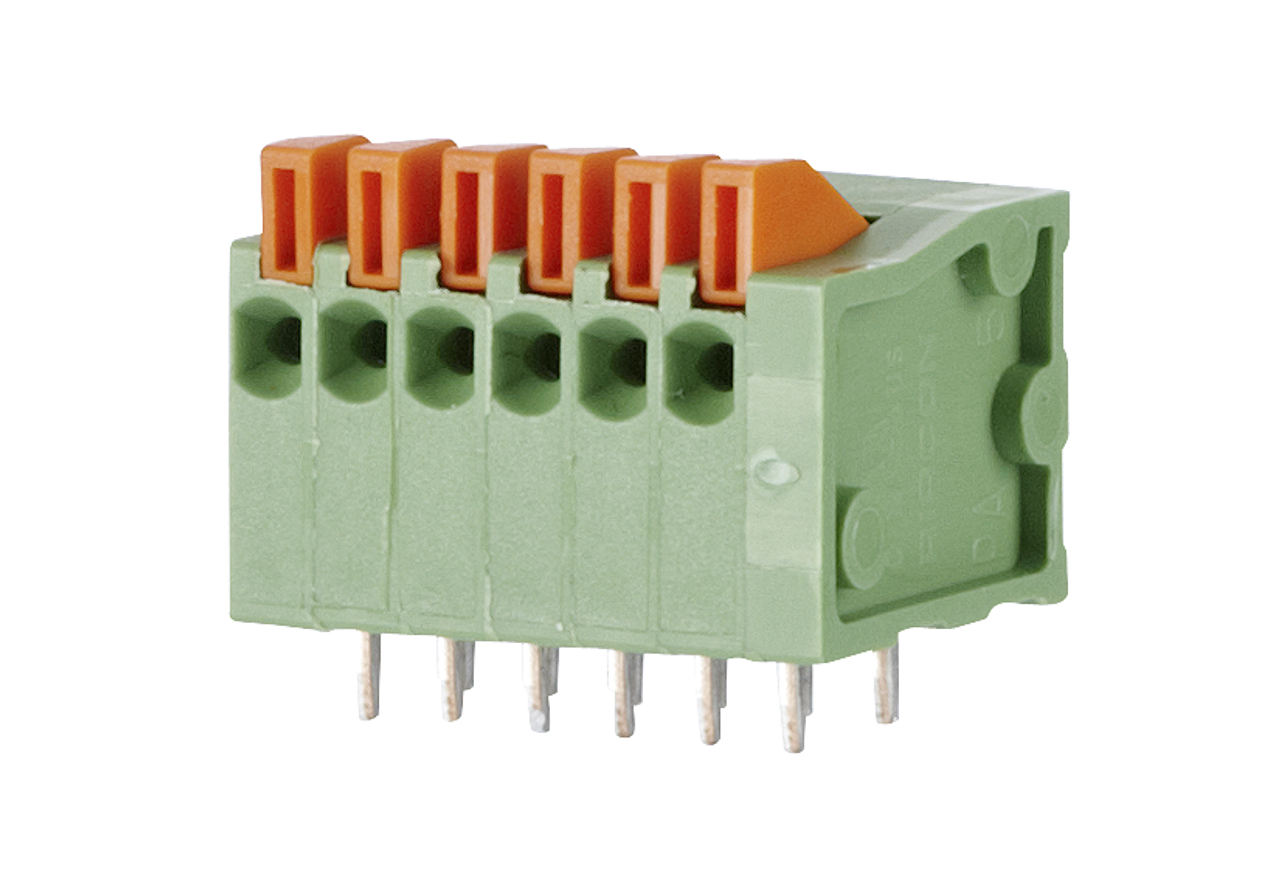

To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
Metz Connect AST0721606
Manufacturer
Metz Connect
Manufacturer Product Number
AST0721606
Bulk Pricing
Qty. Price
1
25
100
250
1000
2500
5000
$9.13
$6.52
$5.71
$5.54
$5.22
$4.96
$4.75
Product Description
Spring Clamp Terminal Block Terminal Block • Mounting : PC Board • Mounting Style: THT • Number Of Poles: 16 • Centerline: 2.54 mm • Direction of connection: 90° • Color: Green
Product Information Resources
Product Attribute Attribute Value Mounting PC Board Mounting Style THT Number Of Poles 16 Centerline 2.54 mm Direction of connection 90° Color Green Connection capacity single-wire 0,2 - 0,5 mm² / AWG 26 - 20 Connection capacity multi-wire 0,2 - 0,5 mm² / AWG 26 - 20 Insulating material class CTI 600 clearance/creepage dist. 2 mm Protection category IP20 Min. insul. strip length 10 mm Rated current 6 A Upper limit temperature 105 °C Lower limit temperature -40 °C
ST072xxHGNN AST072 -Metz Connect Spring Clamp Terminal Block Series Description:
spring clamp terminal block, solderable, double solder pins
centerline 2.54 mm, direction of connection 90°
color green
push-button
Product Videos
Custom Field
RoHS Compliant
