| Manufacturer | Metz Connect |
| Manufacturer Product Number | AST0411204 |
| Description | Spring TB; 12-pos; 2.50mm; PCB; 45°; Lever; 8A; 150V; 2xPins; PA66; Gray; 0.2-0.5 mm² |
| Datasheet | Download Datasheet |

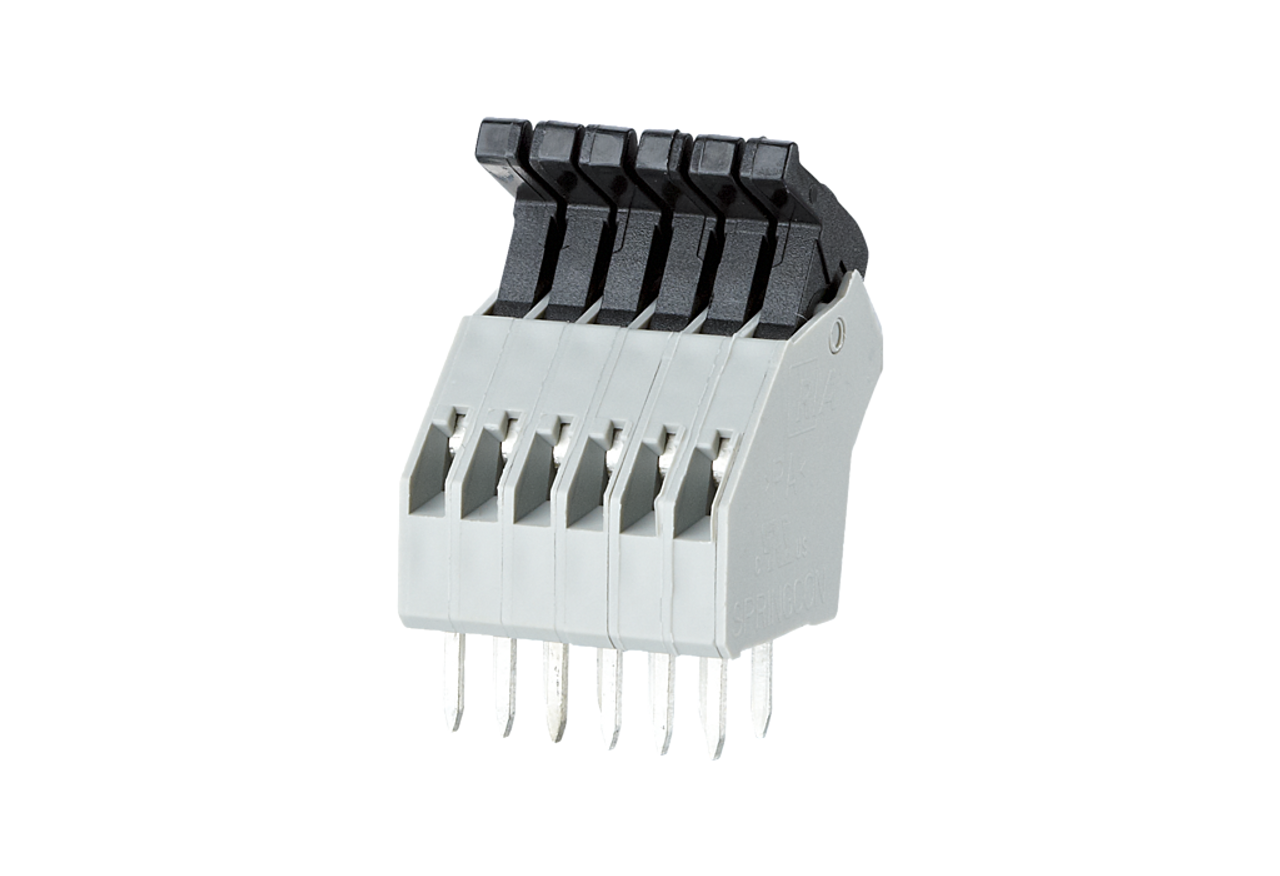

The Metz Connect AST0411204 is a 12-position spring-clamp PCB terminal block on a 2.50 mm (0.098") pitch, with 45° wire entry. It is UL rated 8 A at 150 V for 28-20 AWG wire, and IEC rated 8 A at 200 V (OVC III, PD 2) for 0.2-0.5 mm² wire.
The housing is gray polyamide PA66, rated UL 94 V-0, insulation group CTI 600, IP20 protection. Wires are held by a spring-steel clamp opened with an eccentric lever. Strip wires 6 mm. Contacts are brass (CuZn), nickel + tin plated. Solder pins are 5 mm long, for wave soldering per JEDEC JESD22-B102E (245°C / 5 s). It operates from -40°C to 105°C.
Features: double solder pins. Approvals: cULus, SEV (UL file E121004).
| Category | |
| Manufacturer | Metz Connect |
| Number of Positions | 12 |
| Pitch | 2.50 mm (0.098") |
| Block Type | PCB Mount |
| Wire Entry Angle | 45° |
| Actuation | Eccentric Lever |
| Current Rating | 8 A |
| Voltage Rating | 150 V |
| Wire Range | 28-20 AWG |
| IEC Current Rating | 8 A |
| IEC Voltage Rating | 10 V (OVC III, PD 3), 200 V (OVC III, PD 2), 200 V (OVC II, PD 2) |
| Rated Impulse Voltage | 2.5 kV |
| IEC Wire Range | 0.2-0.5 mm² |
| Strip Length | 6 mm |
| Color | Gray |
| Housing Material | Polyamide PA66 |
| Flammability Rating | UL 94 V-0 |
| Contact Material | Brass (CuZn), Nickel + Tin Plated |
| Spring Material | Spring Steel |
| Operating Temperature | -40°C to 105°C |
| Protection Rating | IP20 |
| Clearance / Creepage | 1.7 mm |
| Insulation Material Group | CTI 600 |
| Solder Pin Length | 5 mm |
| Solderability | Wave, JEDEC JESD22-B102E (245°C / 5 s) |
| Glow-Wire Rating | GWFI 850°C / GWIT 775°C |
| Features | Double Solder Pins |
| UL File | E121004 |
| Approvals | cULus, SEV |
