To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.

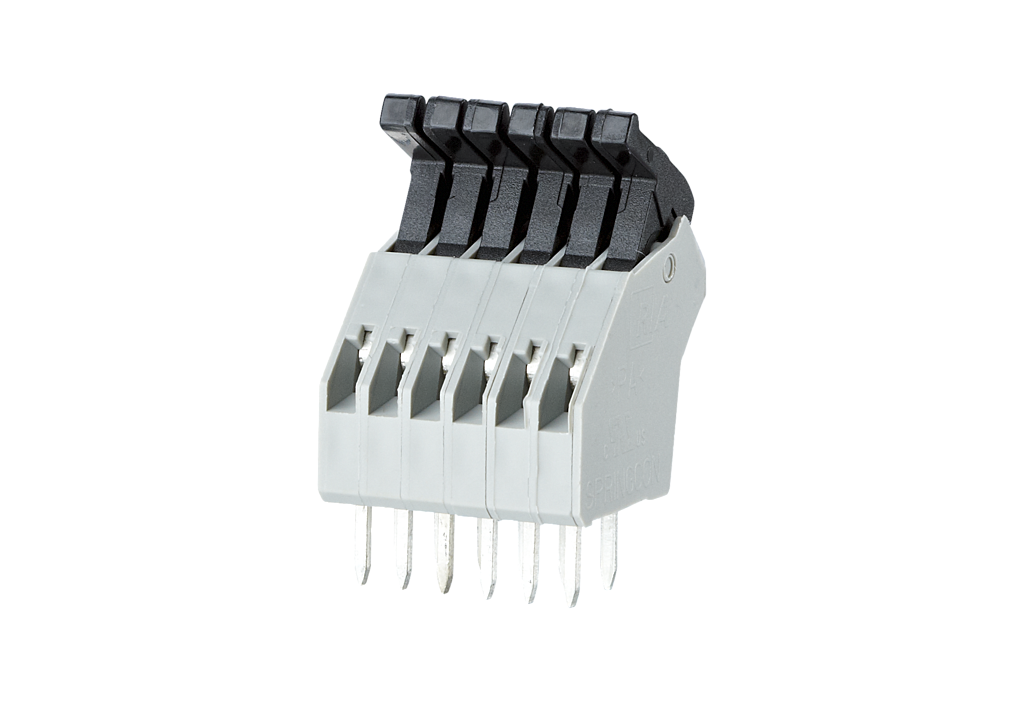

Metz Connect AST0411004
Manufacturer
Metz Connect
Manufacturer Product Number
AST0411004
Bulk Pricing
Qty. Price
1
25
100
250
1000
2500
5000
$5.62
$4.02
$3.51
$3.41
$3.21
$3.05
$2.93
Product Description
Spring Clamp Terminal Block Terminal Block • Mounting : PC Board • Mounting Style: THT • Number Of Poles: 10 • Centerline: 2.50 mm • Direction of connection: 45° • Color: Gray
Product Information Resources
Product Attribute Attribute Value Mounting PC Board Mounting Style THT Number Of Poles 10 Centerline 2.50 mm Direction of connection 45° Color Gray Connection capacity single-wire 0,2 - 0,5 mm² / AWG 28 - 20 Connection capacity multi-wire 0,2 - 0,5 mm² / AWG 28 - 20 Insulating material class CTI 600 clearance/creepage dist. 1.7 mm Protection category IP20 Min. insul. strip length 6 mm Rated current 8 A Upper limit temperature 105 °C Lower limit temperature -40 °C
ST041xxDDNN AST041 -Metz Connect Spring Clamp Terminal Block Series Description:
spring clamp terminal block, solderable, double solder pins
centerline 2.50 mm, direction of connection 45°
color gray
eccentric lever
Product Videos
Custom Field
RoHS Compliant
