Product Description
Description: Spring Clamps Terminal Blocks • Mounting : PC Board • Mounting Style: THT • Number Of Poles: 2 • Centerline: 2.50 mm • Direction of connection: 90° • Color: Gray
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Mounting | PC Board |
| Mounting Style | THT |
| Number Of Poles | 2 |
| Centerline | 2.50 mm |
| Direction of connection | 90° |
| Color | Gray |
| Connection capacity single-wire | 0,2 - 0,5 mm² / AWG 28 - 20 |
| Connection capacity multi-wire | 0,2 - 0,5 mm² / AWG 28 - 20 |
| Insulating material class | CTI 600 |
| clearance/creepage dist. | 1.7 mm |
| Protection category | IP20 |
| Min. insul. strip length | 6 mm |
| Rated current | 8 A |
| Upper limit temperature | 105 °C |
| Lower limit temperature | -40 °C |
| Series Features |

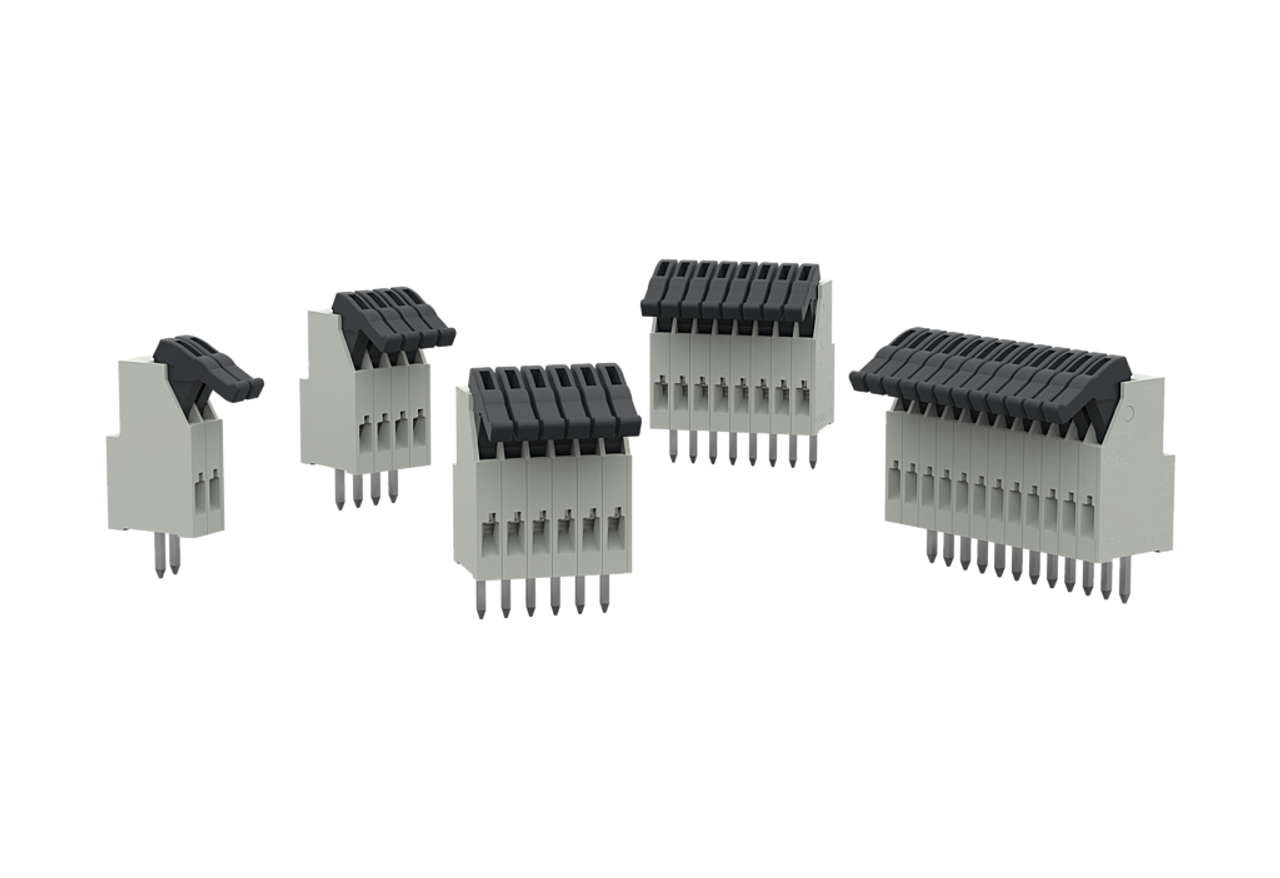

| ST021xxHDNN AST021 -Metz Connect Spring Clamp Terminal Block |
