Product Description
Description: Spring Clamps Terminal Blocks • Mounting : PC Board • Mounting Style: Pluggable • Number Of Poles: 3 • Centerline: 3.81 mm • Direction of connection: 0° • Color: Green
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Mounting | PC Board |
| Mounting Style | Pluggable |
| Number Of Poles | 3 |
| Centerline | 3.81 mm |
| Direction of connection | 0° |
| Color | Green |
| Connection capacity single-wire | 0,08 - 1,5 mm² / AWG 28 - 16 |
| Connection capacity multi-wire | 0,08 - 1,5 mm² / AWG 28 - 16 |
| Insulating material class | CTI 600 |
| clearance/creepage dist. | 1.9 mm |
| Protection category | IP20 |
| Min. insul. strip length | 9 mm |
| Rated current | 8 A |
| Upper limit temperature | 105 °C |
| Lower limit temperature | -40 °C |
| Series Features |

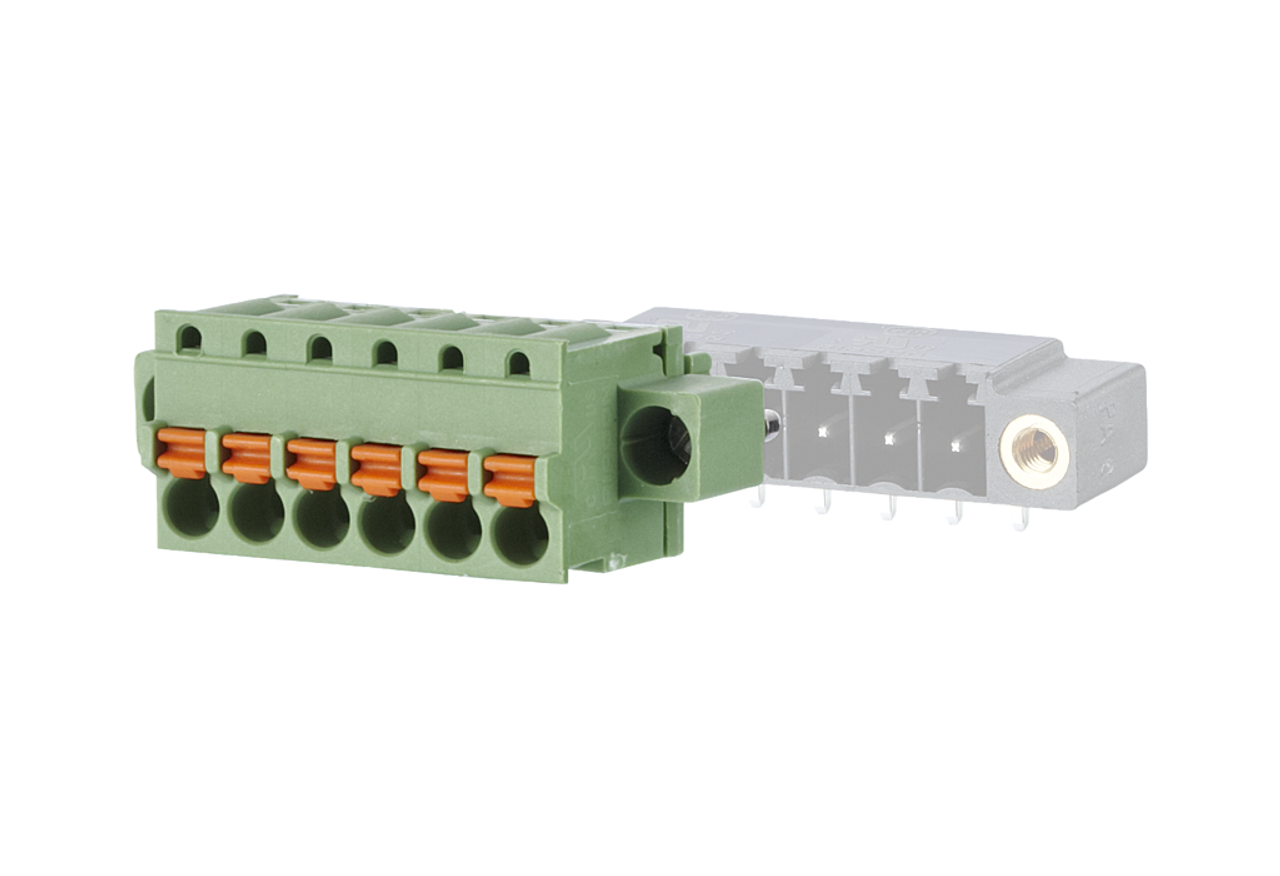

| SP064xxVGNF ASP084 -Metz Connect Spring Clamp Terminal Block |
