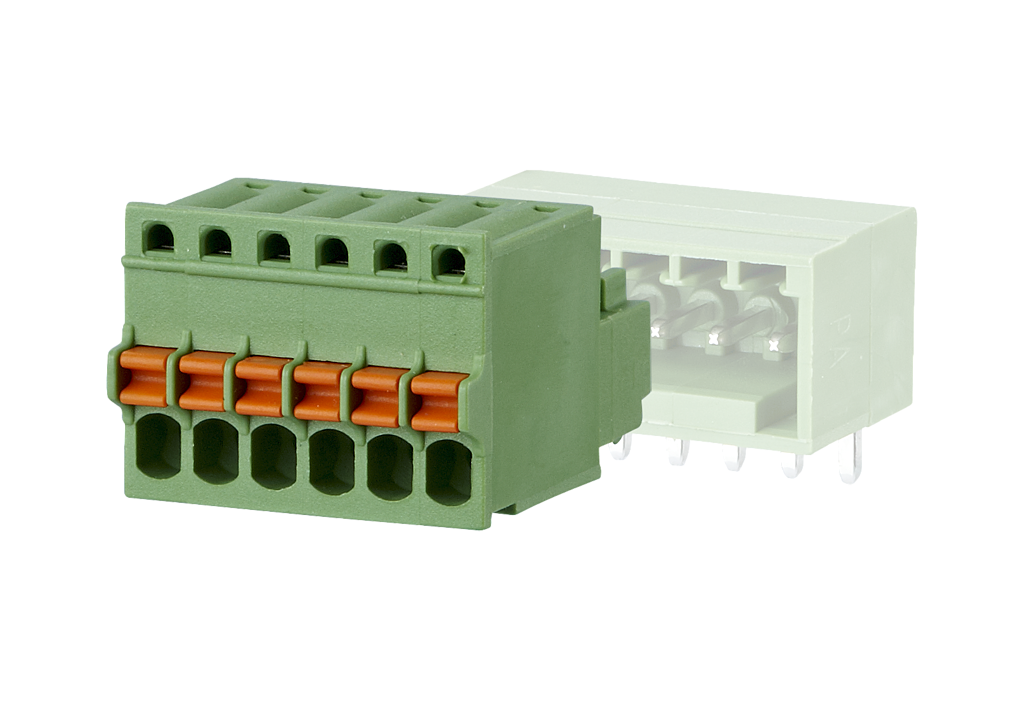

Metz Connect ASP0510606
Manufacturer
Metz Connect
Manufacturer Product Number
ASP0510606
Bulk Pricing
Qty. Price
1
25
100
250
1000
2500
5000
$5.58
$3.99
$3.49
$3.38
$3.19
$3.03
$2.90
Product Description
Spring Clamp Terminal Block Terminal Block • Mounting : PC Board • Mounting Style: Pluggable • Number Of Poles: 6 • Centerline: 2.50 mm • Direction of connection: 0° • Color: Green
Product Information Resources
Product Attribute Attribute Value Mounting PC Board Mounting Style Pluggable Number Of Poles 6 Centerline 2.50 mm Direction of connection 0° Color Green Connection capacity single-wire 0,08 - 0,5 mm² / AWG 28 - 20 Connection capacity multi-wire 0,08 - 0,5 mm² / AWG 28 - 20 Insulating material class CTI 600 clearance/creepage dist. 1.7 mm Protection category IP20 Min. insul. strip length 8 mm Rated current 4 A Upper limit temperature 105 °C Lower limit temperature -40 °C
SP051xxVGNN ASP051 -Metz Connect Spring Clamp Terminal Block Series Description:
spring clamp terminal block, pluggable
centerline 2.50 mm, direction of connection vertical 0°
color green
push-button, wire entry uncodeable side parallel to plug direction
Product Videos
Custom Field
RoHS Compliant
