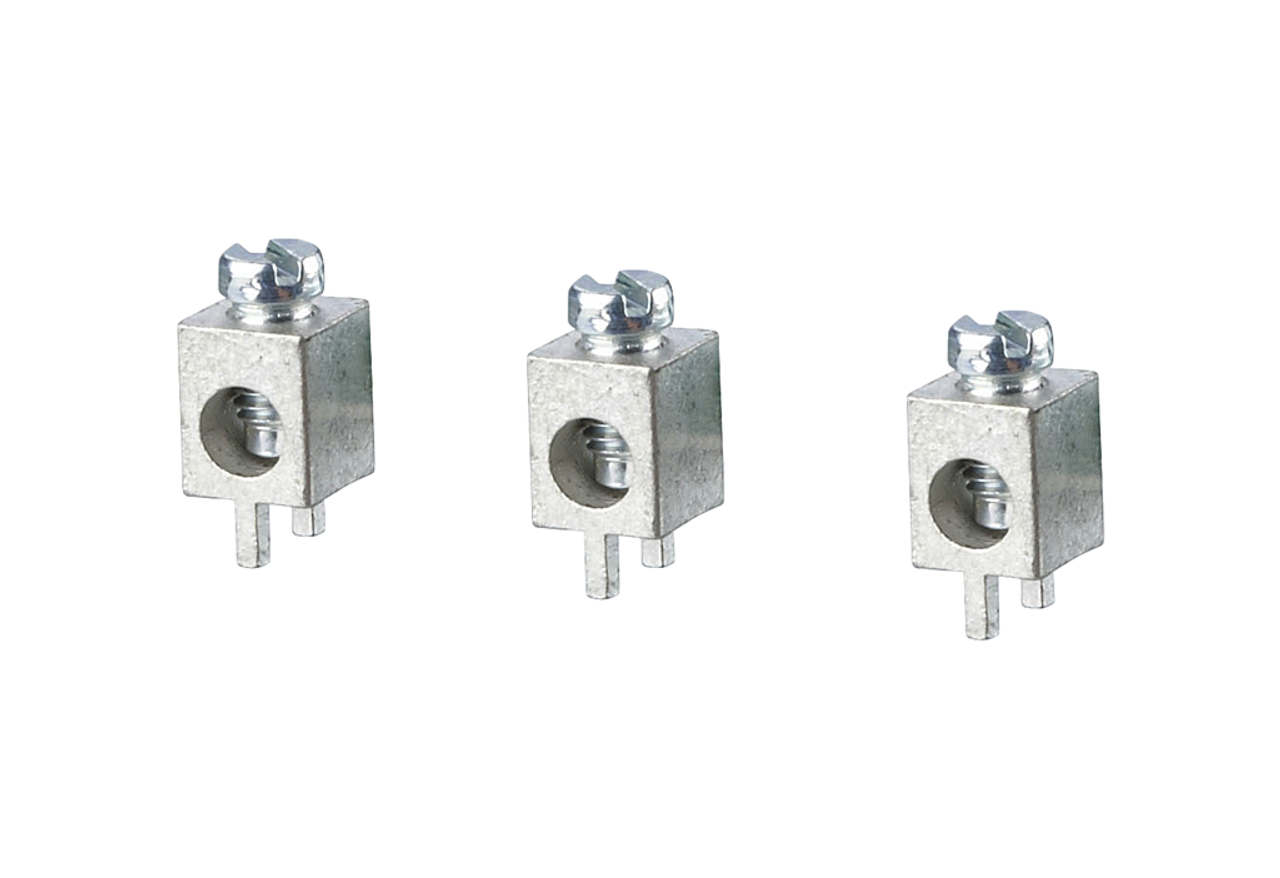

To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
Metz Connect 360381
| Manufacturer |
Metz Connect |
| Manufacturer Product Number |
360381 |
Bulk Pricing
Qty.Price
1
25
100
250
1000
2500
5000
$0.59
$0.42
$0.37
$0.36
$0.34
$0.32
$0.31
Product Description
Screw Type Terminal Blocks Terminal Blocks • Mounting : PC Board • Mounting Style: THR • Number Of Poles: 1 • Centerline: - • Direction of connection: 90° • Color: metallike
|
|
| Product Information | | Resources |
Product Attribute
| Attribute Value
|
| Mounting | PC Board |
| Mounting Style | THR |
| Number Of Poles | 1 |
| Centerline | - |
| Direction of connection | 90° |
| Color | metallike |
| Connection capacity single-wire | 0,5 - 2,5 mm² / AWG 30 - 12 |
| Connection capacity multi-wire | 0,5 - 2,5 mm² / AWG 30 - 12 |
| Insulating material class | - |
| clearance/creepage dist. | - |
| Protection category | IP00 |
| Min. insul. strip length | - |
| Rated current | 16 A |
| Upper limit temperature | - |
| Lower limit temperature | - |
| Type 360381 -Metz Connect Screw Type Terminal Block |
| Series Description: |
- screw type terminal block, THR solderable, double solder pins
- direction of connection 90°
- color metallike
- Tape & Reel packaging
- open construction, screw brought down by hand (transport safety)
|
Product Videos
Custom Field
RoHS Compliant
