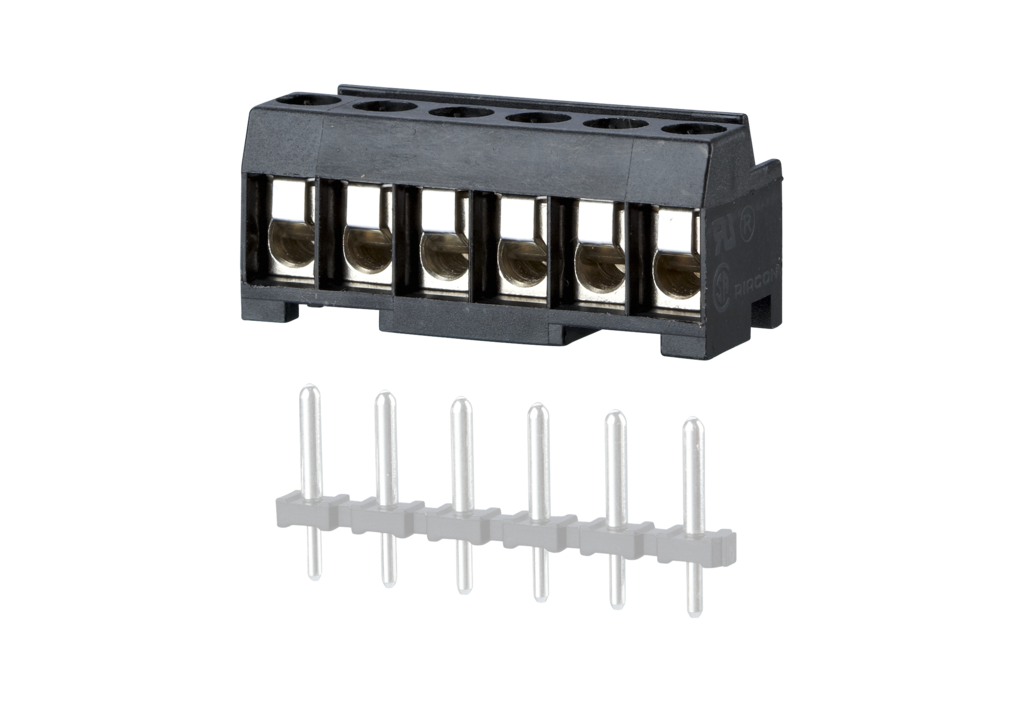

To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
31007108
Manufacturer
Metz Connect
Manufacturer Product Number
31007108
Bulk Pricing
Qty. Price
1
25
100
250
1000
2500
5000
$4.91
$3.51
$3.07
$2.97
$2.80
$2.66
$2.55
Product Description
Description: Screw Type Terminal Blocks Terminal Blocks • Mounting : PC Board • Mounting Style: Pluggable • Number Of Poles: 8 • Centerline: 5.00 mm • Direction of connection: 90° • Color: Black
Product Information Resources
Product Attribute Attribute Value Mounting PC Board Mounting Style Pluggable Number Of Poles 8 Centerline 5.00 mm Direction of connection 90° Color Black Connection capacity single-wire 0,33 - 2,5 mm² / AWG 22 - 12 Connection capacity multi-wire 0,33 - 2,5 mm² / AWG 22 - 12 Insulating material class CTI 600 clearance/creepage dist. 2.3 mm Protection category IP20 Min. insul. strip length 6 mm Rated current 16 A Upper limit temperature 105 °C Lower limit temperature -40 °C
RP025xxIBWC (Typ 007) -Metz Connect Screw Type Terminal Block Series Description:
screw type terminal block, pluggable
centerline 5.00 mm, direction of connection 90°
wire protector, fittable without loss of poles
color black
wire entry perpendicular to plug direction, lamella
Product Videos
Custom Field
RoHS Compliant
