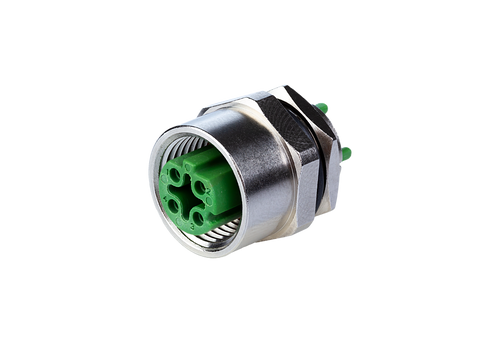

To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Metz Connect |
| Manufacturer Product Number | MMT060A115 |
| Description | Circular Connector Assembly; M12; D-Coded; 4-position; Female; PCB Mount; PCB Insert |
| Datasheet | Download Datasheet |
The Metz Connect MMT060A115 is a D-Coded 4-position M12 female PCB insert. PC board insert M12. Cat.5. 4-pole, D-coded. Suitable for 10/100 MBit. THR solderable. Top entry. Contact carriers green. Suitable for applications in the railway industry according to data sheet.
Orientation: vertical. Color: green. Current Rating: 4 A @ 40 °C. Voltage Rating: 250 V. Features: Railway (EN 45545-2). Contact Material: CuZnPb / Ni + Au. Operating Temperature: -40 °C to 85 °C. Mating Cycles: 100. Ingress Protection: IP65, IP67 (mated).
| Category | |
| Manufacturer | Metz Connect |
| Number of Positions | 4 |
| Shell Size - Insert | M12 |
| Mounting Type | PCB Mount |
| Orientation | Vertical |
| Color | Green |
| Product Type | PCB Insert |
| Gender | Female |
| Termination | THR Solder |
| Current Rating | 4 A @ 40 °C |
| Voltage Rating | 250 V |
| Features | Railway (EN 45545-2) |
| Contact Material | CuZnPb / Ni + Au |
| Operating Temperature | -40 °C to 85 °C |
| Mating Cycles | 100 |
| Coding | D-Coded |
| Ingress Protection | IP65, IP67 (mated) |
