To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Mechatronics |
| Manufacturer Product Number | MSI2577H24B1+7-BBR |
| Description | Motorized Impeller; 250x77.3mm; 24 VDC; 716 CFM; 2800 RPM; Ball; Tach+V-Ctrl; Lead Wires |
| Datasheet | Download Datasheet |

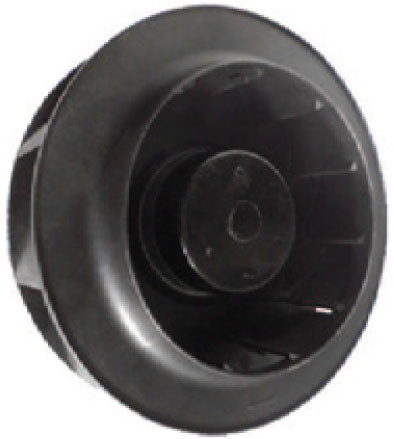

The Mechatronics MSI2577H24B1+7-BBR is a 250 x 77.3 mm 24 VDC motorized impeller moving 716 CFM (20.27 m³/min) at 2,800 RPM, with a maximum static pressure of 3.37 inH2O (85.60 mmH2O) and a noise level of 76 dBA.
It runs on ball bearings and connects with lead wires. It has a tachometer output and a voltage speed control.
It draws 7.20 A / 172.8 W. It has a Brushless DC motor, with reverse polarity protection and locked rotor protection. The motor base is die-cast aluminum. The impeller is UL94V-0 Plastic. It operates from -10 to +70 °C and can be stored from -40 to +70 °C.
| Category | |
| Manufacturer | Mechatronics |
| Model | MSI2577H24 |
