To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Mechatronics |
| Manufacturer Product Number | MR9238E12B2-FSR |
| Description | DC Fan; 92x92x38mm; 12 VDC; 173 CFM; 8000 RPM; Ball; Alarm; Lead Wires; Flanged |
| Datasheet | Download Datasheet |

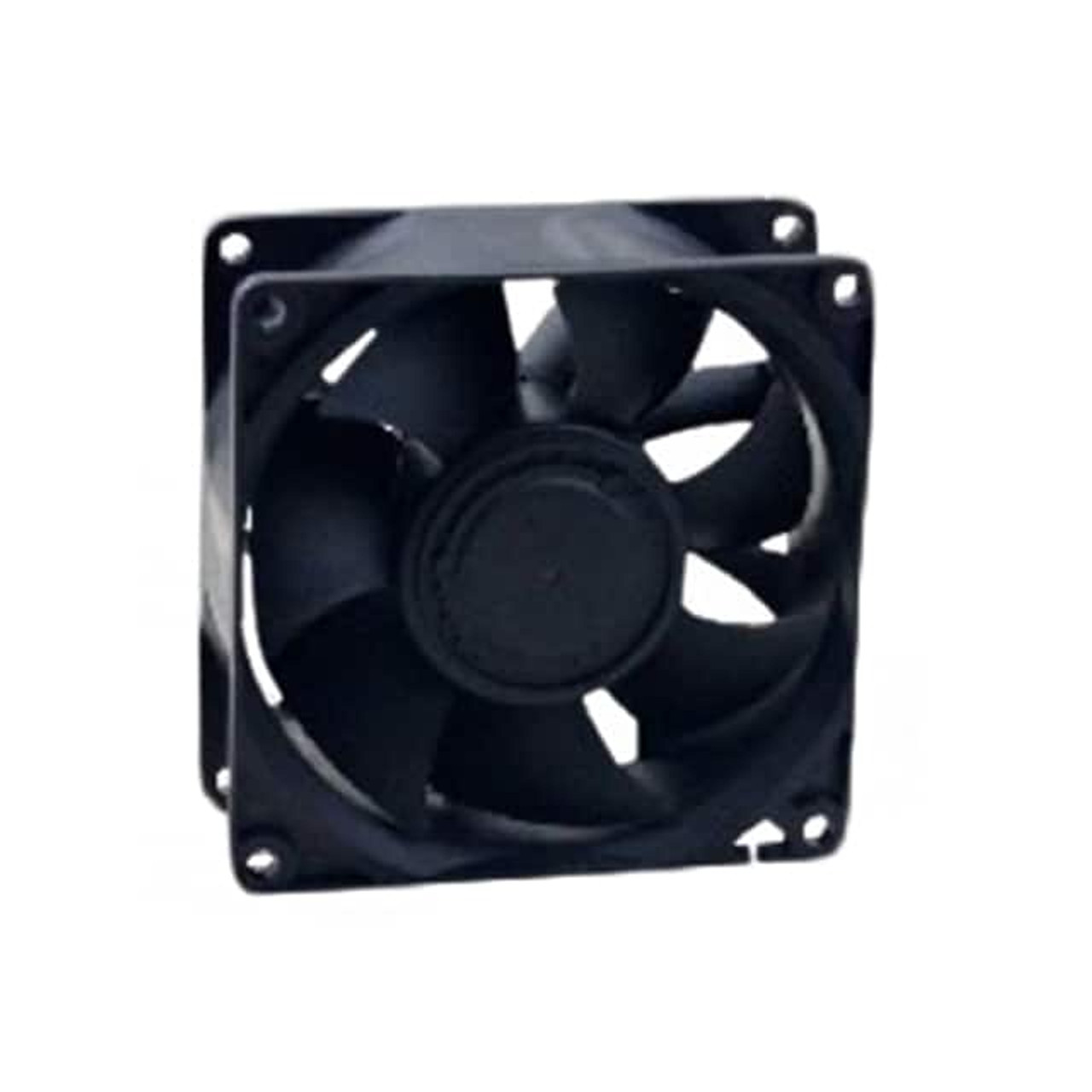

The Mechatronics MR9238E12B2-FSR is a 92 x 92 x 38 mm 12 VDC axial fan moving 173 CFM (4.90 m³/min) at 8,000 RPM, with a maximum static pressure of 1.54 inH2O (39.12 mmH2O) and a noise level of 63.3 dBA.
It runs on ball bearings and connects with lead wires. It has a locked rotor alarm. The housing is flanged.
It draws 2.30 A / 27.6 W. It has a Brushless DC motor, with reverse polarity protection and locked rotor protection. Frame and impeller are UL94V-0 PBT Plastic. It operates from -10 to +70 °C and can be stored from -40 to +70 °C.
| Category | |
| Manufacturer | Mechatronics |
| Model | MR9238E12 |
| Fan Type | Axial |
| Dimensions | 92 x 92 x 38 mm (3.62 x 3.62 x 1.50 in) |
| Rated Voltage | 12 VDC |
| Air Flow | 173 CFM (4.90 m3/min) |
| Max Static Pressure | 1.54 inH2O (39.12 mmH2O) |
| Speed (RPM) | 8000 |
| Noise Level (dBA) | 63.3 |
| Input Power (W) | 27.6 |
| Rated Current (A) | 2.30 |
| Bearing Type | Ball |
| Termination | Lead Wires |
| Housing Style | Flanged |
| Airflow Direction | Air exhaust over struts |
| Motor Type | Brushless DC |
| Motor Protection | Reverse polarity protection, Locked rotor protection |
| Frame Material | UL94V-0 PBT Plastic |
| Impeller Material | UL94V-0 PBT Plastic |
| Insulation Class | Class A |
| Operating Temperature | -10...+70 °C (-40...+70 °C) |
