To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Mechatronics |
| Manufacturer Product Number | MR8032E12B6-FSR |
| Description | DC Fan; 80x80x32mm; 12 VDC; 79 CFM; 6500 RPM; Ball; PWM; Lead Wires; Flanged |
| Datasheet | Download Datasheet |

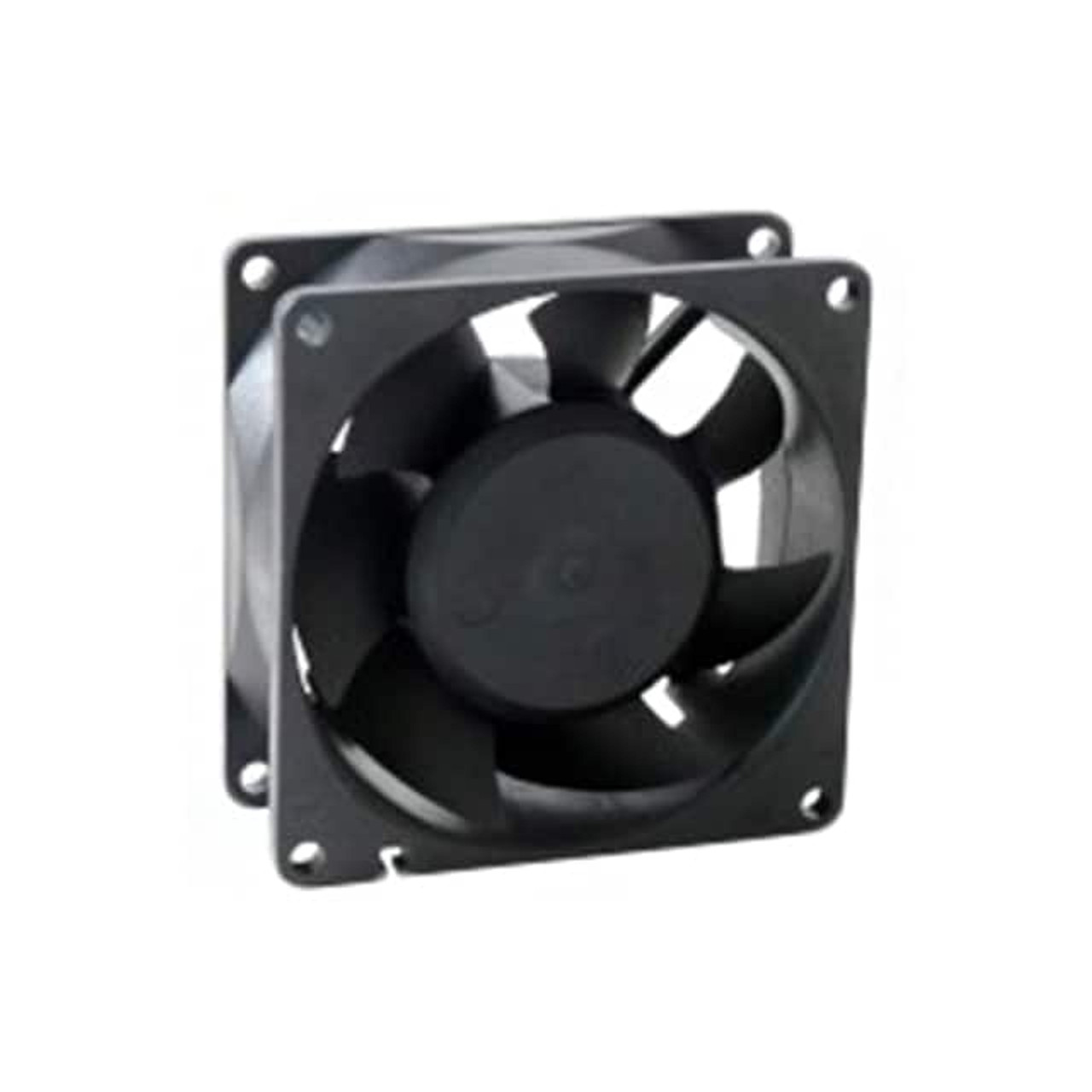

The Mechatronics MR8032E12B6-FSR is a 80 x 80 x 32 mm 12 VDC axial fan moving 79 CFM (2.24 m³/min) at 6,500 RPM, with a maximum static pressure of 0.89 inH2O (22.61 mmH2O) and a noise level of 50.4 dBA.
It runs on ball bearings and connects with lead wires. It has PWM speed control. The housing is flanged.
It draws 0.86 A / 10.32 W. It has a Brushless DC motor, with reverse polarity protection and locked rotor protection. Frame and impeller are UL94V-0 PBT Plastic. It operates from -10 to +70 °C and can be stored from -40 to +70 °C.
| Category | |
| Manufacturer | Mechatronics |
| Model | MR8032E12 |
| Fan Type | Axial |
| Dimensions | 80 x 80 x 32 mm (3.15 x 3.15 x 1.26 in) |
| Rated Voltage | 12 VDC |
| Air Flow | 79 CFM (2.24 m3/min) |
| Max Static Pressure | 0.89 inH2O (22.61 mmH2O) |
| Speed (RPM) | 6500 |
| Noise Level (dBA) | 50.4 |
| Input Power (W) | 10.32 |
| Rated Current (A) | 0.86 |
| Bearing Type | Ball |
| Termination | Lead Wires |
| Housing Style | Flanged |
| Airflow Direction | Air exhaust over struts |
| Motor Type | Brushless DC |
| Motor Protection | Reverse polarity protection, Locked rotor protection |
| Frame Material | UL94V-0 PBT Plastic |
| Impeller Material | UL94V-0 PBT Plastic |
| Insulation Class | Class A |
| Operating Temperature | -10...+70 °C (-40...+70 °C) |
