Product Description

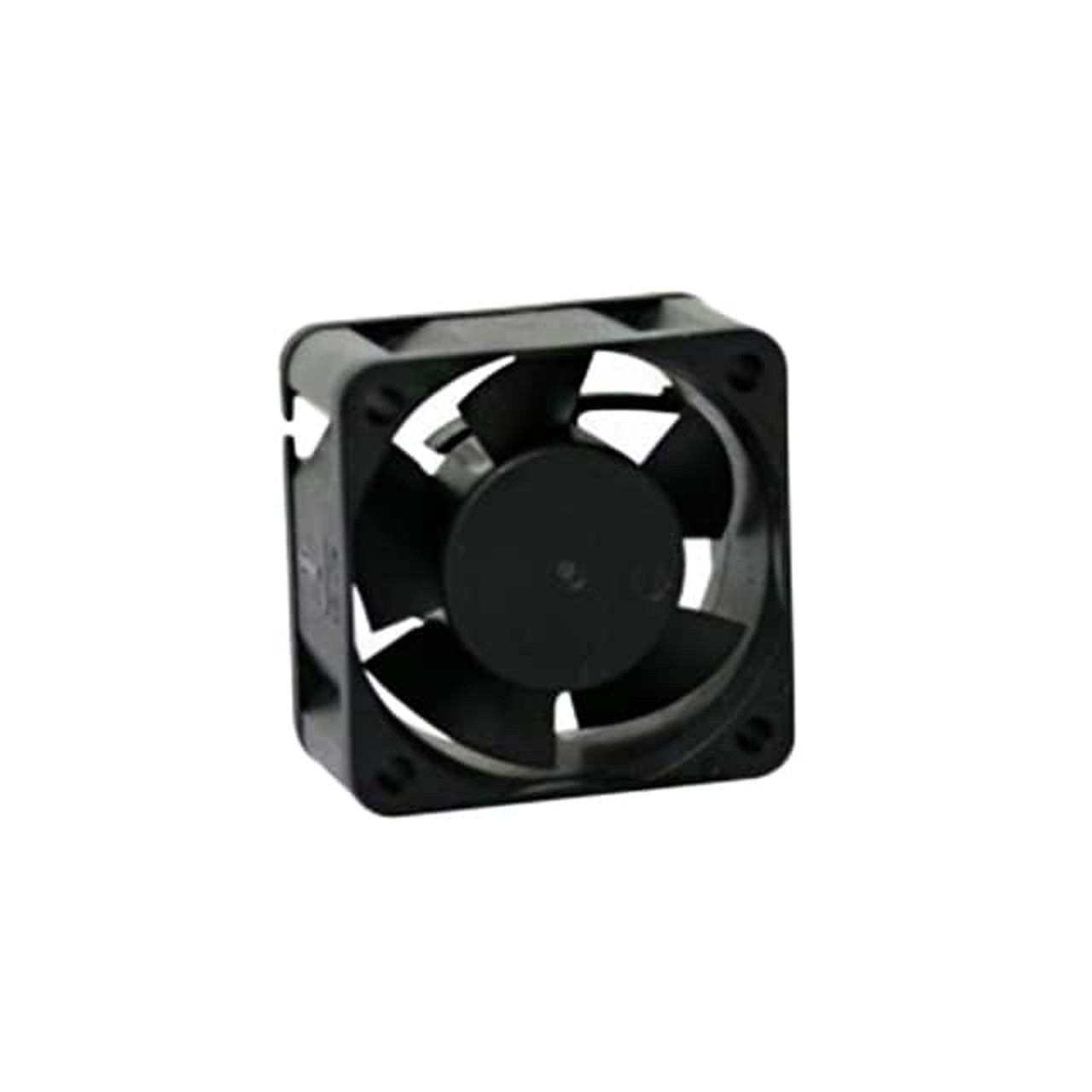

Description: DC Axial Fan • Voltage - Rated: 24VDC • Shape: Square • Frame Size: 40x40x20mm • Air Flow: 15.8 CFM • Static Pressure: 0.450 in H2O (112.1 Pa) • Bearing Type: Ball Bearing • Housing Style: Ribbed style • RPM: 11000 RPM • Impeller Style: Standard
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Voltage - Rated | 24VDC |
| Shape | Square |
| Frame Size | 40x40x20mm |
| Width | 20.00mm |
| Air Flow | 15.8 CFM |
| Static Pressure | 0.450 in H2O (112.1 Pa) |
| Bearing Type | Ball Bearing |
| Fan Type | Tubeaxial |
| Housing Style | Ribbed style |
| Impeller Style | Standard |
| Features | Auto Restart, Locked Rotor Sensor |
| Noise | 39.1dB(A) |
| RPM | 11000 RPM |
| Termination | 3 Wire Leads |
| Ingress Protection | - |
| Approval Agency | CE, cUL, TUV, UL |
| Weight | 0.053 lb (24.04 g) |
