To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Mechatronics |
| Model | MD9238X24 |
| Manufacturer Product Number | MD9238X24B-FSR-CC |
| Description | DC Axial Fan; 92x92x38mm; 24 VDC; 123.57 CFM; 5400 RPM; Ball; Lead Wires; CC; Flanged |
| Datasheet | Download Datasheet |

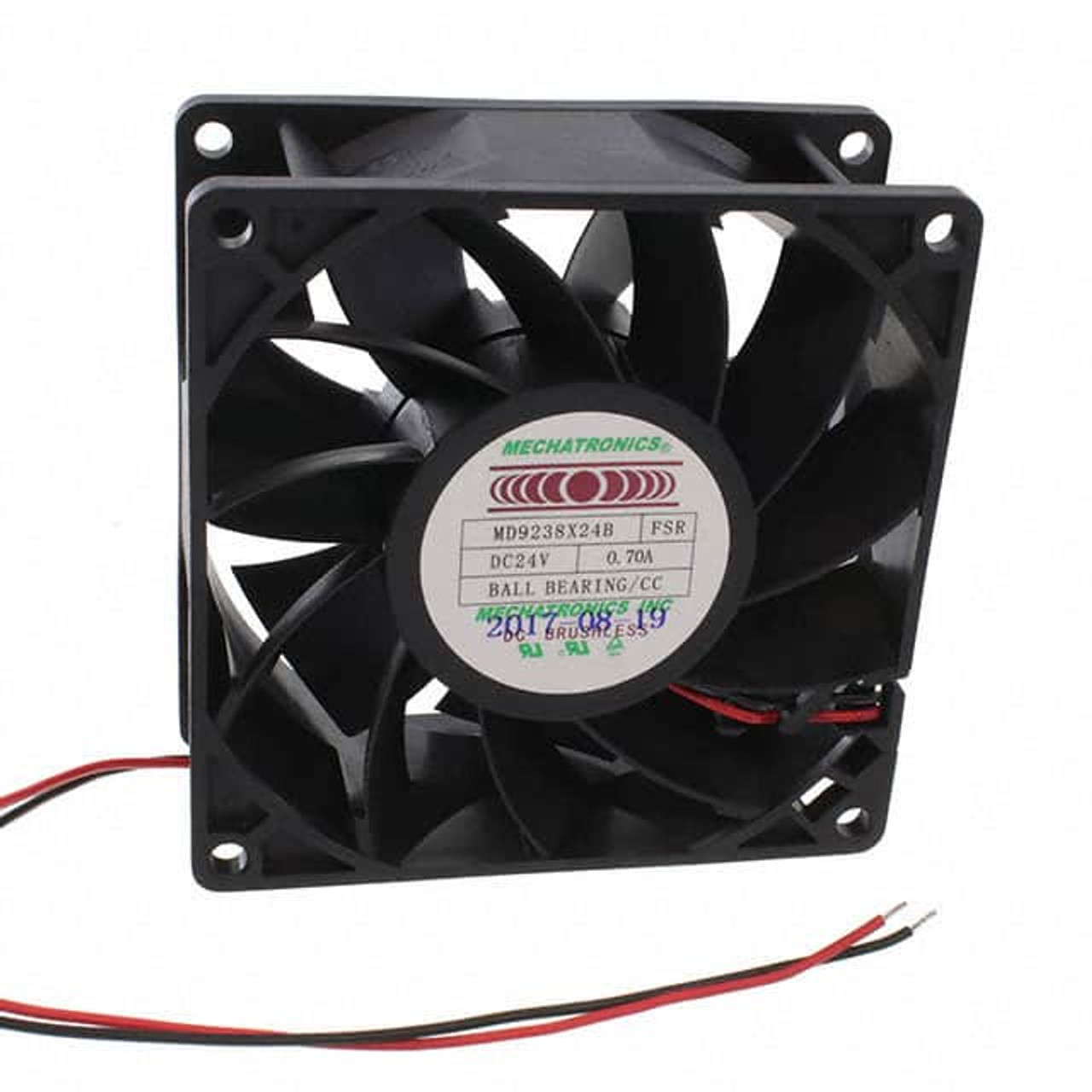

The Mechatronics MD9238X24B-FSR-CC is a 92 x 92 x 38 mm 24 VDC axial fan moving 123.57 CFM (3.50 m³/min) at 5,400 RPM, with a maximum static pressure of 0.84 inH2O (21.34 mmH2O) and a noise level of 58.4 dBA.
It runs on ball bearings and connects with lead wires. Environmental protection: Conformal Coating. The housing is flanged.
It draws 0.70 A / 16.8 W. It has a Brushless DC motor, with reverse polarity protection and locked rotor protection. Frame and impeller are UL94V-0 PBT Plastic. It operates from -10 to +70 °C and can be stored from -40 to +70 °C.
| Category | |
| Manufacturer | Mechatronics |
