To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Mechatronics |
| Manufacturer Product Number | MD1238X12B1+6-FSR |
| Description | DC Fan; 120x120x38mm; 12 VDC; 205 CFM; 4500 RPM; Ball; Tach+PWM; Lead Wires; Flanged |
| Datasheet | Download Datasheet |

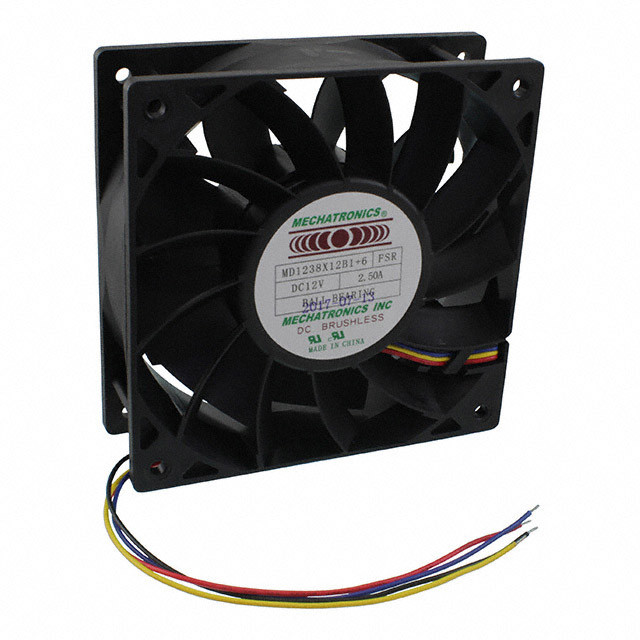

The Mechatronics MD1238X12B1+6-FSR is a 120 x 120 x 38 mm 12 VDC axial fan moving 205 CFM (5.80 m³/min) at 4,500 RPM, with a maximum static pressure of 0.94 inH2O (23.88 mmH2O) and a noise level of 62 dBA.
It runs on ball bearings and connects with lead wires. It has a tachometer output and PWM speed control. The housing is flanged.
It draws 2.50 A / 30 W. It has a Brushless DC motor, with reverse polarity protection and locked rotor protection. Frame and impeller are UL94V-0 PBT Plastic. It operates from -10 to +70 °C and can be stored from -40 to +70 °C.
| Category | |
| Manufacturer | Mechatronics |
| Model | MD1238X12 |
