Product Description

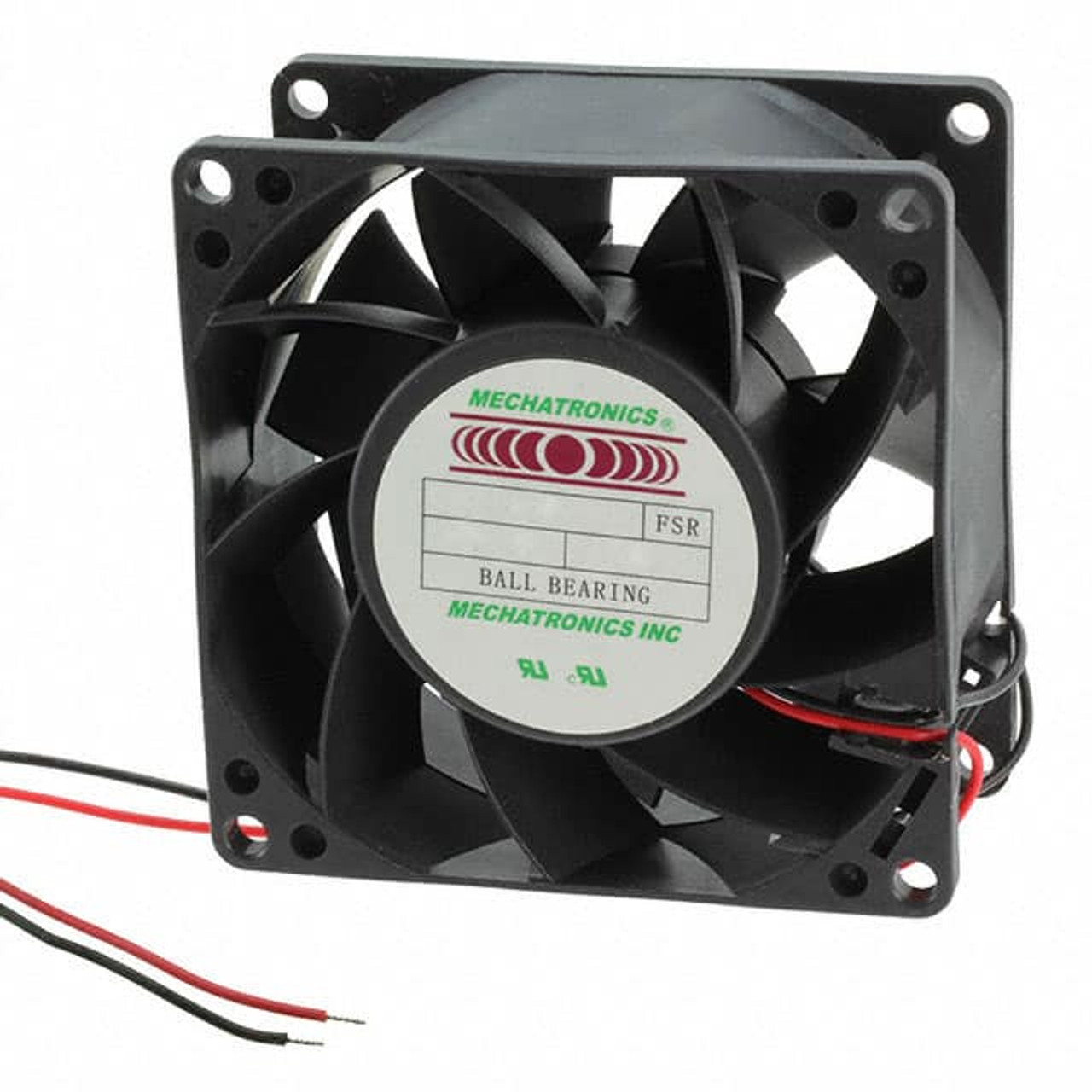

Description: DC Axial Fan • Voltage - Rated: 48VDC • Shape: Square • Frame Size: 80x80x38mm • Air Flow: 69.9 CFM • Static Pressure: 0.610 in H2O (151.9 Pa) • Bearing Type: Ball Bearing • Housing Style: Flanged style • RPM: 5000 RPM • Impeller Style: Standard Impeller
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Voltage - Rated | 48VDC |
| Shape | Square |
| Frame Size | 80x80x38mm |
| Width | 38.00mm |
| Air Flow | 69.9 CFM |
| Static Pressure | 0.610 in H2O (151.9 Pa) |
| Bearing Type | Ball Bearing |
| Fan Type | Tubeaxial |
| Housing Style | Flanged style |
| Impeller Style | Standard Impeller |
| Features | Thermal Overload Protector (TOP) |
| Noise | 48.2dB(A) |
| RPM | 5000 RPM |
| Termination | 2 Wire Leads |
| Ingress Protection | - |
| Approval Agency | cUL, TUV, UL |
| Weight | 0.397 lb (180.08 g) |
