| Manufacturer | Mechatronics |
| Model | G8032H12 |
| Manufacturer Product Number | G8032H12B1-RSR-EM |
| Description | DC Fan; 80x80x32mm; 12 VDC; 48 CFM; 4000 RPM; Ball; Tach; Lead Wires; IP57; Ribbed |
| Datasheet | Download Datasheet |

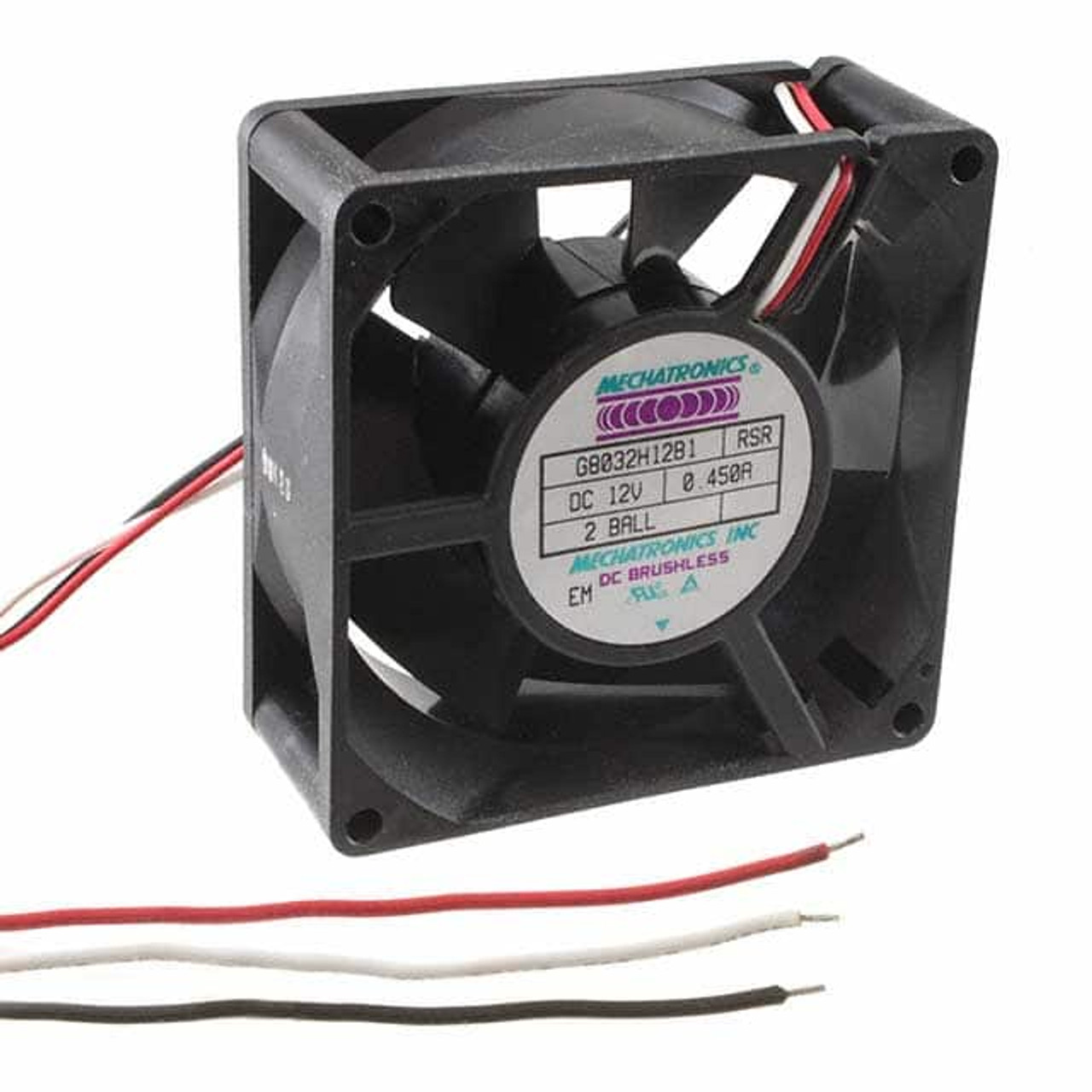

The Mechatronics G8032H12B1-RSR-EM is a 80 x 80 x 32 mm 12 VDC axial fan moving 48 CFM (1.36 m³/min) at 4,000 RPM, with a maximum static pressure of 0.37 inH2O (9.40 mmH2O) and a noise level of 42 dBA.
It runs on ball bearings and connects with lead wires. It has a tachometer output. Environmental protection: IP57 Encapsulated Motor. The housing is ribbed.
It draws 0.45 A / 5.4 W. It has a Brushless DC motor, with reverse polarity protection and locked rotor protection. Frame and impeller are UL94V-0 PBT Plastic. It operates from -10 to +70 °C and can be stored from -40 to +70 °C.
| Category | |
| Manufacturer | Mechatronics |
