To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Mechatronics |
| Manufacturer Product Number | G4020E12B1-RSR-WS |
| Description | DC Fan; 40x40x20mm; 12 VDC; 11.7CFM; 8000RPM; Ball; Tach+OC Alarm; Leads; Ribbed |
| Datasheet | Download Datasheet |

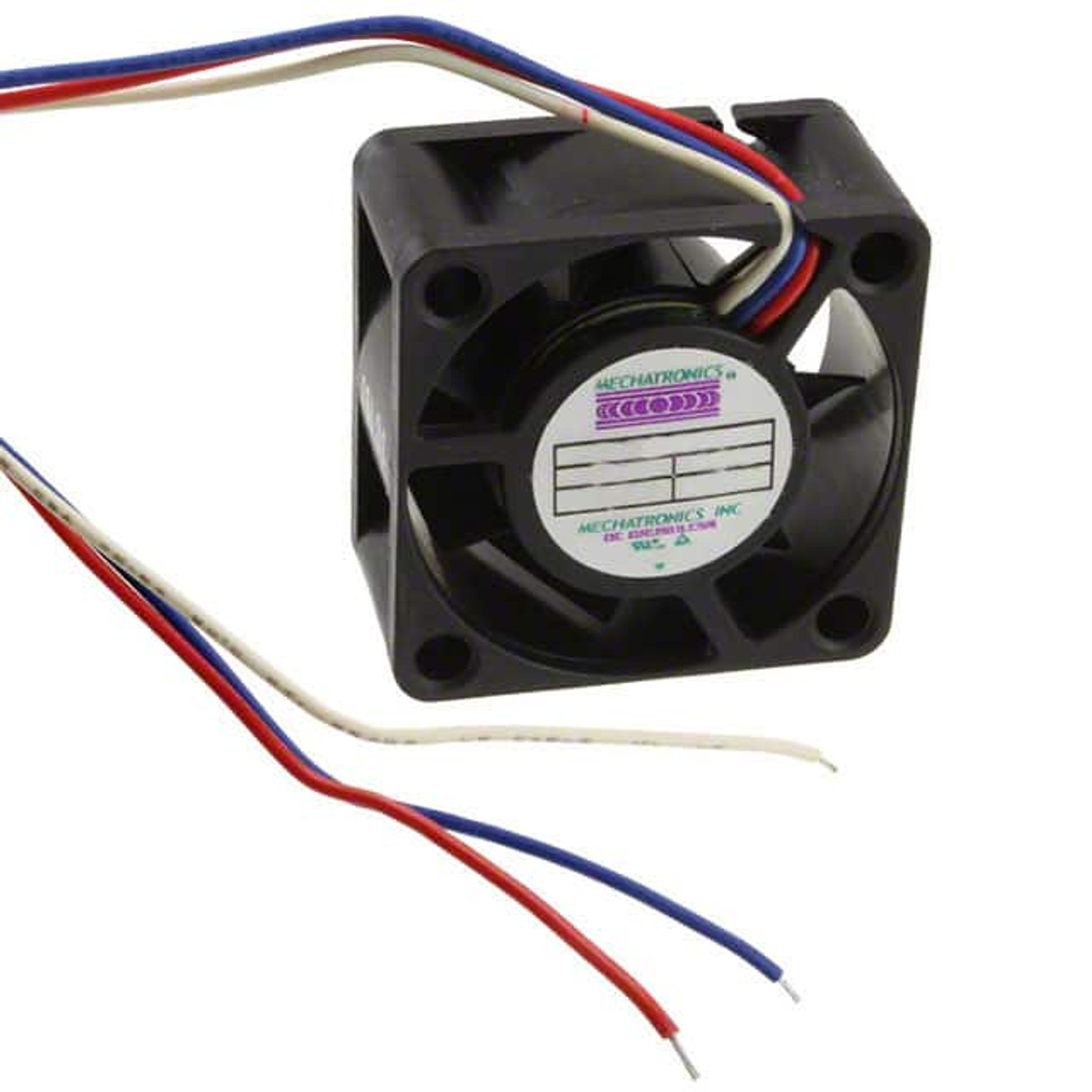

The Mechatronics G4020E12B1-RSR-WS is a 40 x 40 x 20 mm 12 VDC axial fan moving 11.7 CFM (0.33 m³/min) at 8,000 RPM, with a maximum static pressure of 0.23 inH2O (5.84 mmH2O) and a noise level of 32 dBA.
It runs on ball bearings and connects with lead wires. It has a tachometer output and an open collector alarm. The housing is ribbed.
It draws 0.16 A / 1.92 W. It has a Brushless DC motor, with reverse polarity protection and locked rotor protection. Frame and impeller are UL94V-0 PBT Plastic. It operates from -10 to +70 °C and can be stored from -40 to +70 °C.
| Category | |
| Manufacturer | Mechatronics |
| Model | G4020E12 |
