Product Description

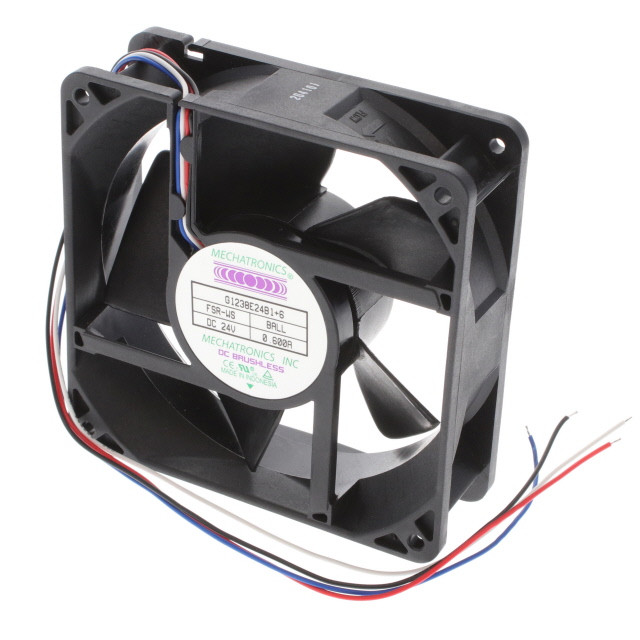

Description: DC Axial Fan • Voltage - Rated: 24VDC • Shape: Square • Frame Size: 120x120x38mm • Air Flow: 158.0 CFM • Static Pressure: 0.490 in H2O (122.1 Pa) • Bearing Type: Ball Bearing • Housing Style: Flanged style • RPM: 3600 RPM • Impeller Style: Standard
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Voltage - Rated | 24VDC |
| Shape | Square |
| Frame Size | 120x120x38mm |
| Width | 38.00mm |
| Air Flow | 158.0 CFM |
| Static Pressure | 0.490 in H2O (122.1 Pa) |
| Bearing Type | Ball Bearing |
| Fan Type | Tubeaxial |
| Housing Style | Flanged style |
| Impeller Style | Standard |
| Features | Alarm Sensor, PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) |
| Noise | 49.0dB(A) |
| RPM | 3600 RPM |
| Termination | 4 Wire Leads |
| Ingress Protection | - |
| Approval Agency | CE, cUL, TUV, UL |
| Weight | 0.74 lb (335.66 g) |
