Product Description

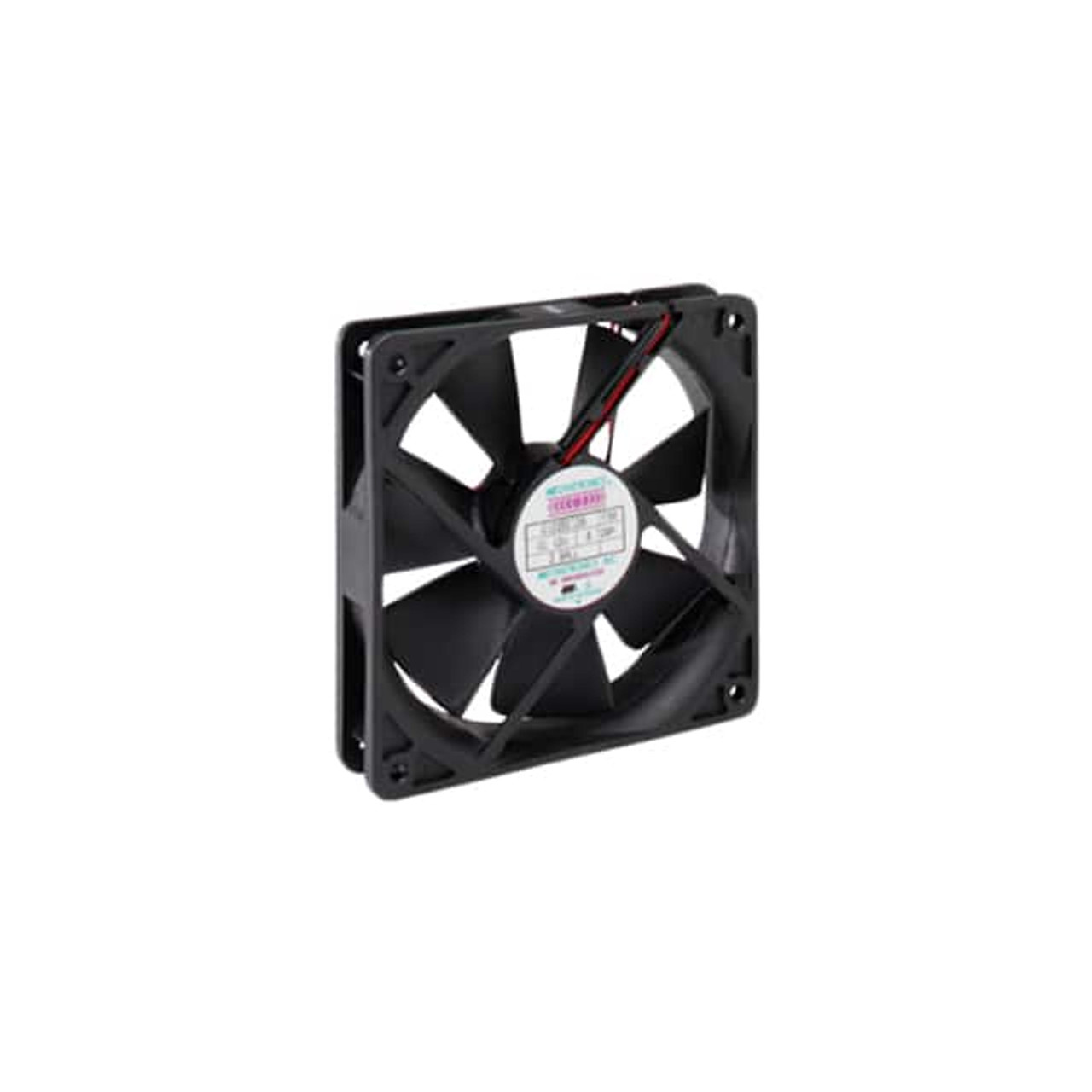

Description: DC Axial Fan • Voltage - Rated: 12VDC • Shape: Square • Frame Size: 120x120x25mm • Air Flow: 99.0 CFM • Static Pressure: 0.220 in H2O (54.8 Pa) • Bearing Type: Ball Bearing • Housing Style: Flanged style • RPM: 2700 RPM • Impeller Style: Standard Impeller
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Voltage - Rated | 12VDC |
| Shape | Square |
| Frame Size | 120x120x25mm |
| Width | 25.00mm |
| Air Flow | 99.0 CFM |
| Static Pressure | 0.220 in H2O (54.8 Pa) |
| Bearing Type | Ball Bearing |
| Fan Type | Tubeaxial |
| Housing Style | Flanged style |
| Impeller Style | Standard Impeller |
| Features | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) |
| Noise | 42.0dB(A) |
| RPM | 2700 RPM |
| Termination | 4 Wire Leads |
| Ingress Protection | - |
| Approval Agency | CE, cUL, TUV, UL |
| Weight | 0.434 lb (196.86 g) |
