Product Description

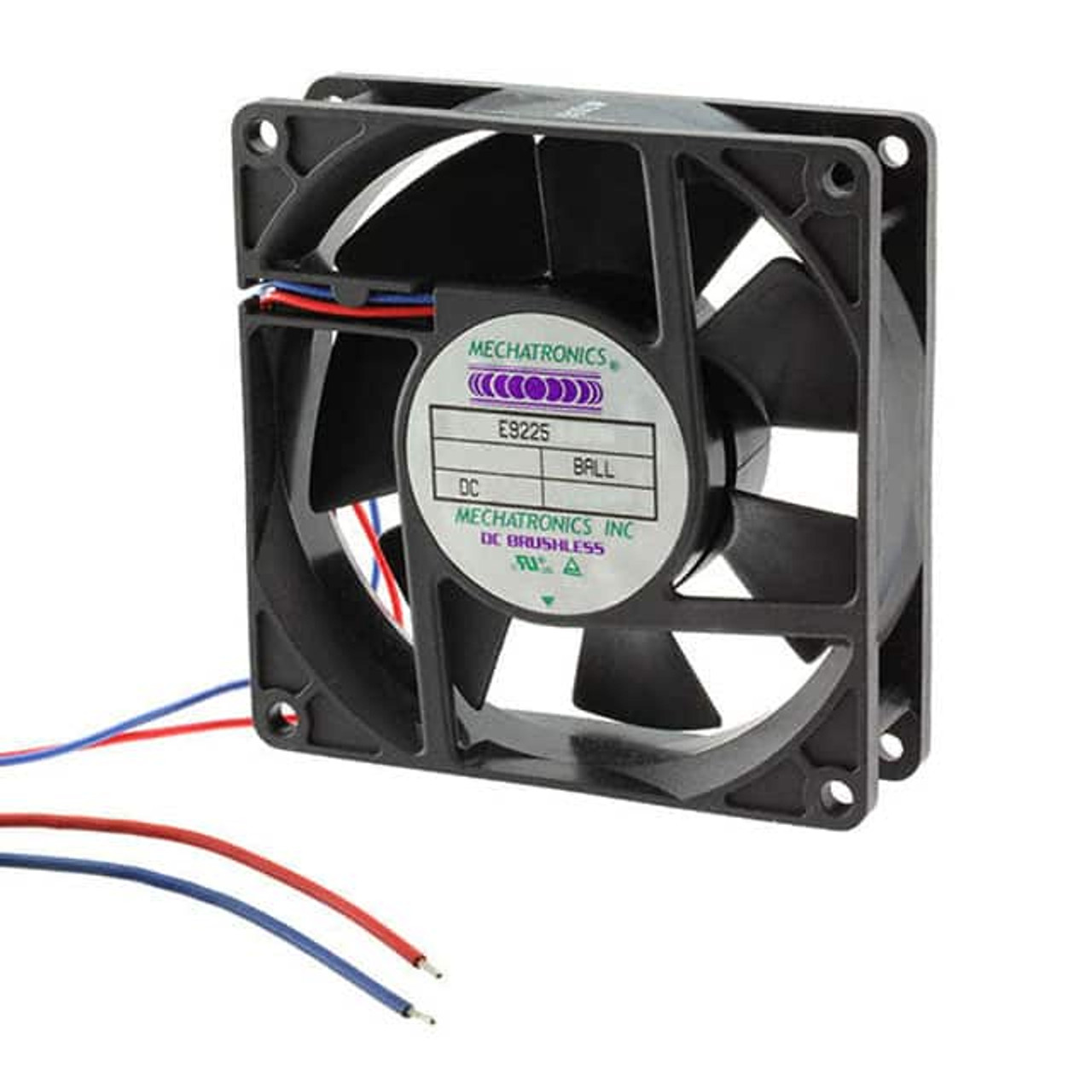

Description: DC Axial Fan • Voltage - Rated: 24VDC • Shape: Square • Frame Size: 92 x 92 x 25 mm • Air Flow: 60.0 CFM • Static Pressure: 0.320 in H2O (79.7 Pa) • Bearing Type: Ball Bearing • Housing Style: Flanged style • RPM: 4000 RPM • Impeller Style: Standard Impeller
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Voltage - Rated | 24VDC |
| Shape | Square |
| Frame Size | 92 x 92 x 25 mm |
| Width | 25.00mm |
| Air Flow | 60.0 CFM |
| Static Pressure | 0.320 in H2O (79.7 Pa) |
| Bearing Type | Ball Bearing |
| Fan Type | Tubeaxial |
| Housing Style | Flanged style |
| Impeller Style | Standard Impeller |
| Features | Thermal Overload Protector (TOP) |
| Noise | 43.0dB(A) |
| RPM | 4000 RPM |
| Termination | 2 Wire Leads |
| Ingress Protection | IP57 - Dust Protected, Waterproof |
| Approval Agency | CE, cUL, TUV, UL |
| Weight | 0.245 lb (111.13 g) |
