To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Mechatronics |
| Model | E9225L12 |
| Manufacturer Product Number | E9225L12B-FSR |
| Description | DC Axial Fan; 92x92x25mm; 12 VDC; 35 CFM; 2400 RPM; Ball; Lead Wires; Flanged |
| Datasheet | Download Datasheet |

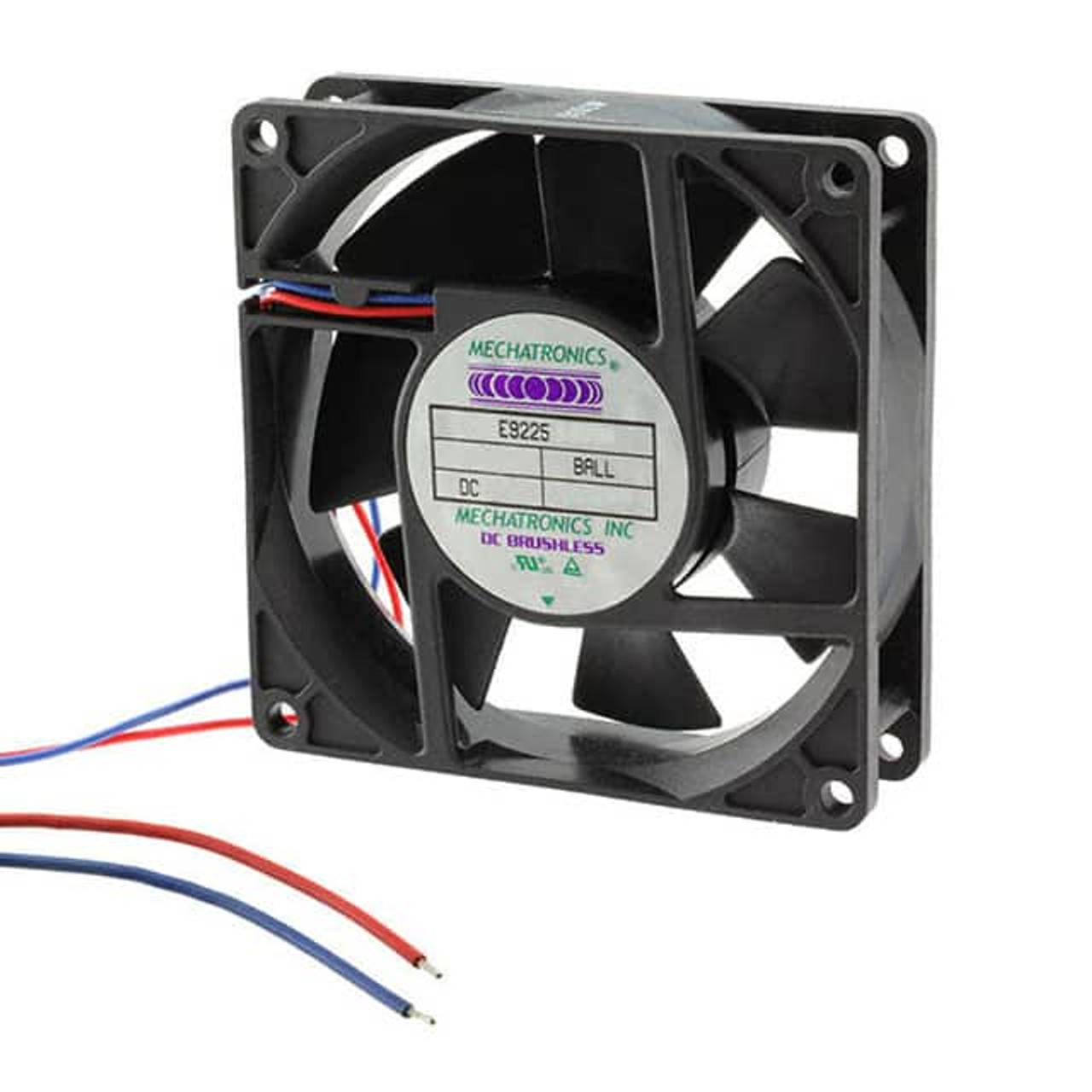

The Mechatronics E9225L12B-FSR is a 92 x 92 x 25 mm 12 VDC axial fan moving 35 CFM (0.99 m³/min) at 2,400 RPM, with a maximum static pressure of 0.13 inH2O (3.30 mmH2O) and a noise level of 27 dBA.
It runs on ball bearings and connects with lead wires. The housing is flanged.
It draws 0.15 A / 1.8 W. It has a Brushless DC motor, with reverse polarity protection and locked rotor protection. Frame and impeller are UL94V-0 PBT Plastic. It operates from -10 to +70 °C and can be stored from -40 to +70 °C.
| Category | |
| Manufacturer | Mechatronics |
