Product Description

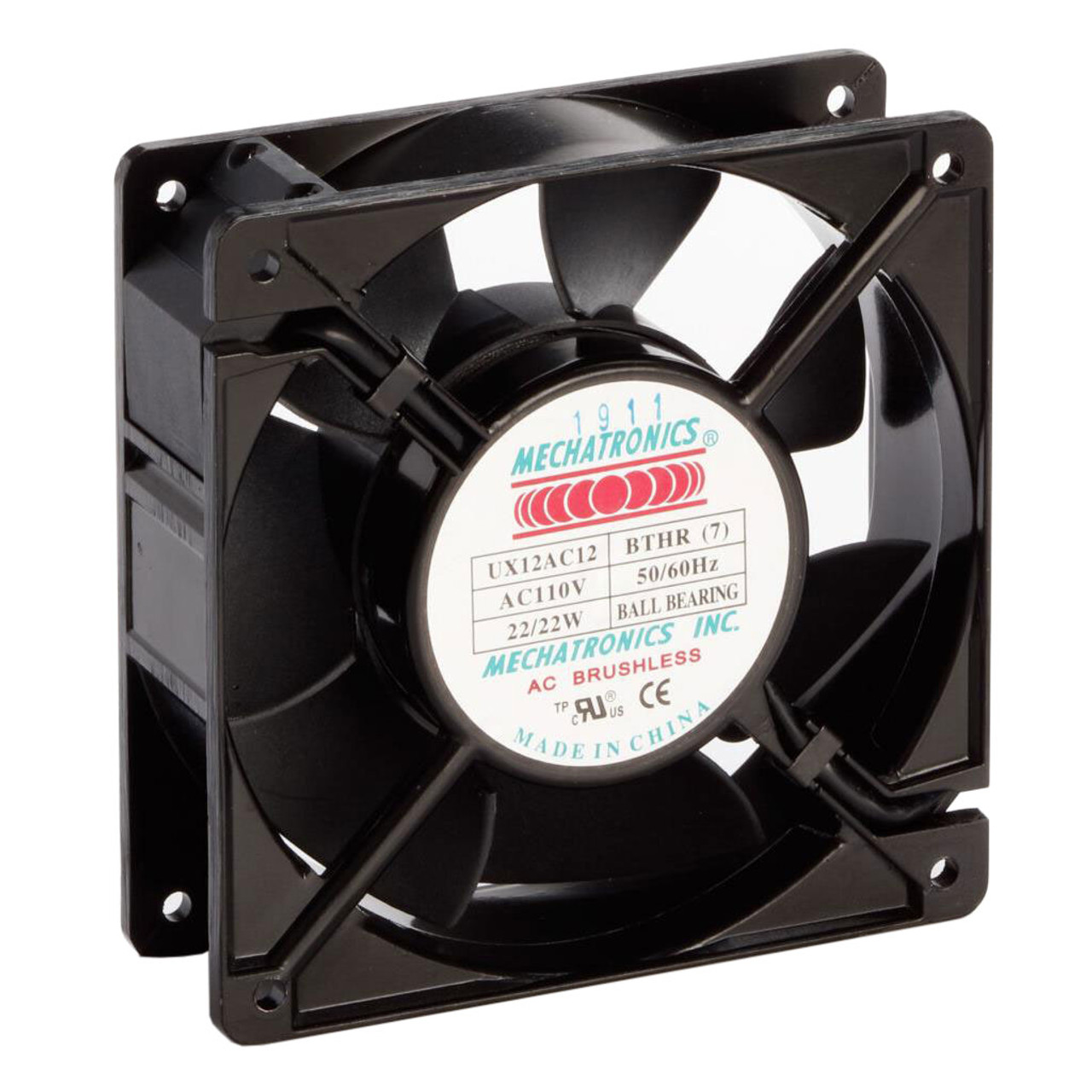

Mechatronics UX12AC Series AC Axial Fan; 120x120x38mm; Square; 115VAC; 2 Terminals; 130.0 CFM (3.64m³/min); Ball
AC Axial Fan • Voltage - Rated: 115VAC • Size / Dimension: Square • Frame Size: 120x120x38mm • Width: 38.00mm • Air Flow: 130.0 CFM (3.64m³/min) • Static Pressure: 0.500 in H2O (124.5 Pa) • Bearing Type: Ball • Noise: 47.0dB(A) • Power (Watts): 22.00W • RPM: 3300 RPM • Features: Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)
Product Information
| Manufacturer | Mechatronics |
| Product Category | Fans and Blowers |
| Product Sub Category | AC Axial Fan |
| Series | UX12AC Series |
| Catalog Part Number | UX12AC12-BTHR-7 |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Voltage - Rated | 115VAC |
| Size / Dimension | Square |
| Frame Size | 120x120x38mm |
| Width | 38.00mm |
| Air Flow | 130.0 CFM (3.64m³/min) |
| Static Pressure | 0.500 in H2O (124.5 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Noise | 47.0dB(A) |
| Power (Watts) | 22.00W |
| RPM | 3300 RPM |
| Features | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) |
| Termination | 2 Terminals |
| Ingress Protection | - |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Approval Agency | CE, cUL, TUV, UL |
| Weight | 1.1 lbs (499.0 g) |
