Product Description

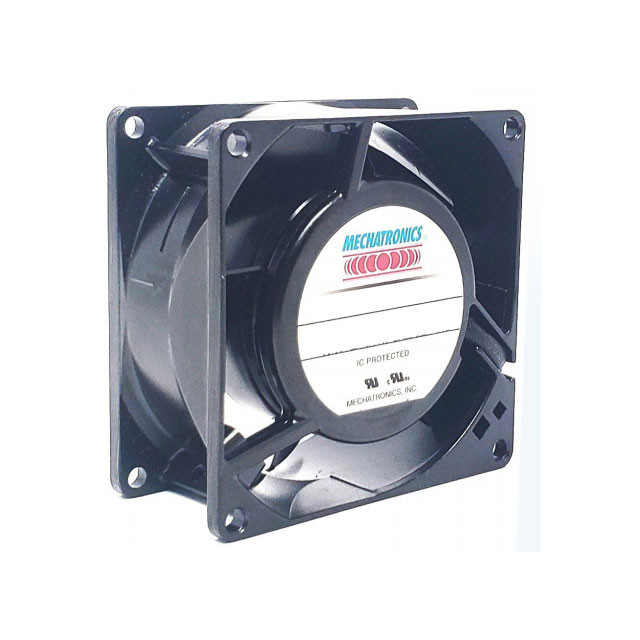

Mechatronics UF80AM Series AC Axial Fan; 80x80x38mm; Square; 115VAC; 2 Terminals; 34.0 CFM (0.952m³/min); Ball
AC Axial Fan • Voltage - Rated: 115VAC • Size / Dimension: Square • Frame Size: 80x80x38mm • Width: 38.00mm • Air Flow: 34.0 CFM (0.952m³/min) • Static Pressure: 0.260 in H2O (64.8 Pa) • Bearing Type: Ball • Features: - • Noise: 40.0dB(A) • Power (Watts): 11.00W • RPM: 3250 RPM
Product Information
| Manufacturer | Mechatronics |
| Product Category | Fans and Blowers |
| Product Sub Category | AC Axial Fan |
| Series | UF80AM Series |
| Catalog Part Number | UF80AM12-BTHR-F |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Voltage - Rated | 115VAC |
| Size / Dimension | Square |
| Frame Size | 80x80x38mm |
| Width | 38.00mm |
| Air Flow | 34.0 CFM (0.952m³/min) |
| Static Pressure | 0.260 in H2O (64.8 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | - |
| Noise | 40.0dB(A) |
| Power (Watts) | 11.00W |
| RPM | 3250 RPM |
| Termination | 2 Terminals |
| Ingress Protection | - |
| Operating Temperature | -40 ~ 194°F (-40 ~ 90°C) |
| Approval Agency | - |
| Weight | - |
