Product Description

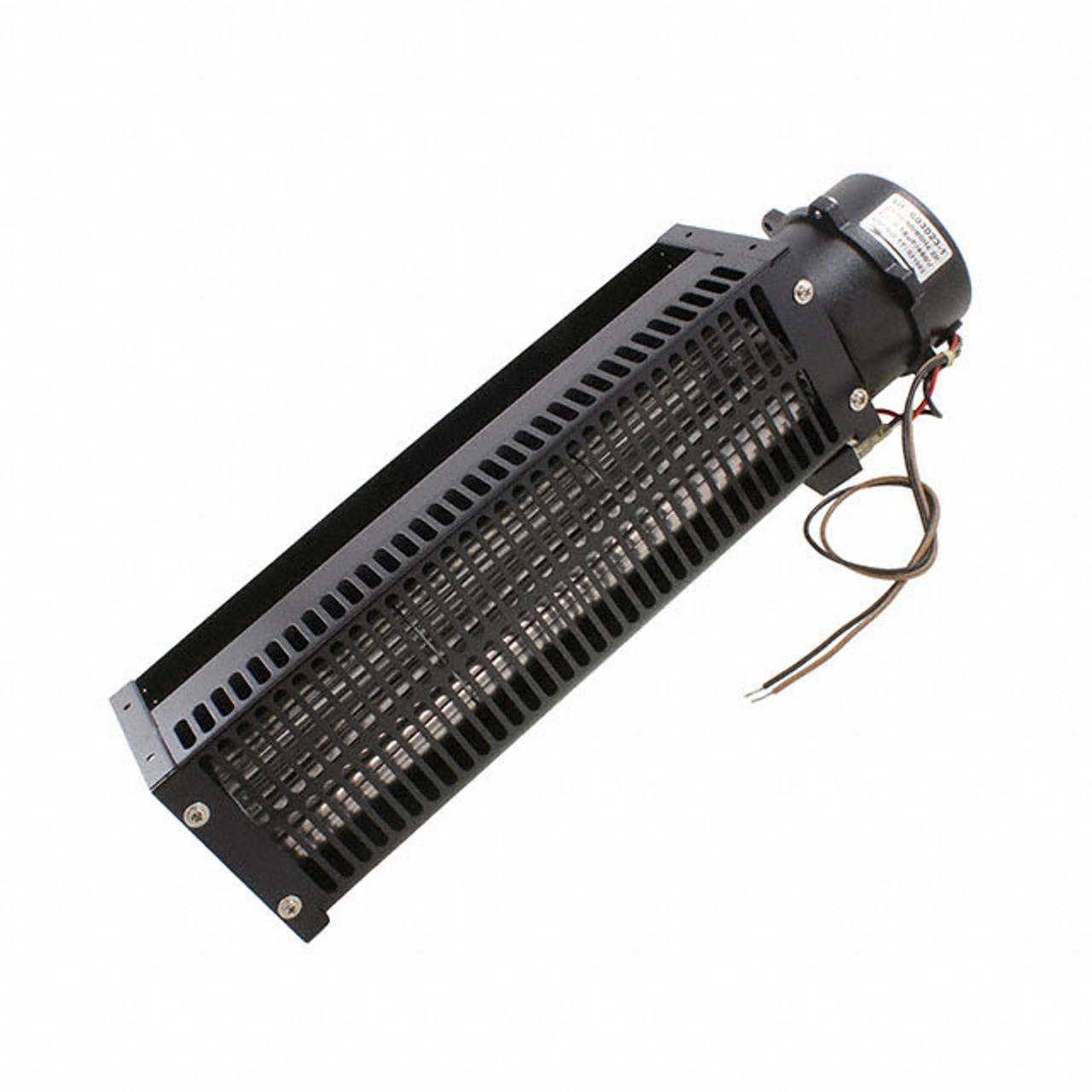

Mechatronics UF6030 Series AC Axial Fan; 402x90x98mm; Rect; 230VAC; 2 Wire Leads; 195.0 CFM (5.46m³/min); Ball
AC Axial Fan • Voltage - Rated: 230VAC • Shape: Rect • Frame Size: 402x90x98mm • Width: 98.00mm • Air Flow: 195.0 CFM (5.46m³/min) • Static Pressure: 0.300 in H2O (74.7 Pa) • Bearing Type: Ball • Features: Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) • Noise: 53.0dB(A) • Power (Watts): 37.00W • RPM: 3000 RPM
Product Information
| Manufacturer | Mechatronics |
| Product Category | Fans and Blowers |
| Product Sub Category | AC Axial Fan |
| Series | UF6030 Series |
| Catalog Part Number | UF6030CBA23H-L |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Voltage - Rated | 230VAC |
| Shape | Rect |
| Frame Size | 402x90x98mm |
| Width | 98.00mm |
| Air Flow | 195.0 CFM (5.46m³/min) |
| Static Pressure | 0.300 in H2O (74.7 Pa) |
| Bearing Type | Ball |
| Fan Type | Blower, Cross Flow |
| Features | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) |
| Noise | 53.0dB(A) |
| Power (Watts) | 37.00W |
| RPM | 3000 RPM |
| Termination | 2 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Approval Agency | CE, TUV |
| Weight | 4.3 lbs (2 kg) |
