To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Mechatronics |
| Manufacturer Product Number | UF25GC23-BTHR |
| Description | AC Axial Fan; 254x89mm; 230 VAC; 550 CFM; 1650 RPM; Ball; QC Term |
| Datasheet | Download Datasheet |

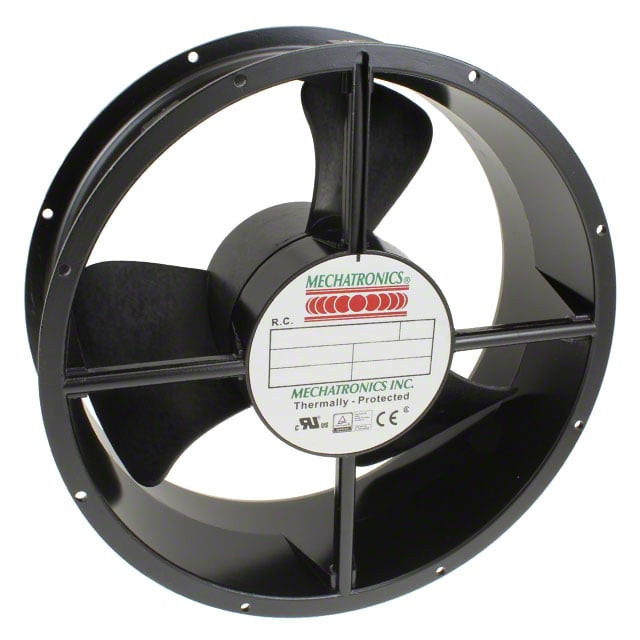

The Mechatronics UF25GC23-BTHR is a 254 x 89 mm 230 VAC axial fan moving 550 CFM (15.57 m³/min) at 1,650 RPM, with a maximum static pressure of 0.40 inH2O (10.16 mmH2O) and a noise level of 55 dBA (60 Hz figures).
It runs on ball bearings and connects with 0.110 in quick-connect terminals.
It draws 0.14 A / 33 W. It has a permanent split capacitor motor, with thermal protection. The frame is die-cast aluminum. The impeller is UL94V-0 PBT Plastic. It operates from -40 to +70 °C and can be stored from -40 to +70 °C.
| Category | |
| Manufacturer | Mechatronics |
| Model | UF25GC23-H |
| Fan Type | Axial |
| Dimensions | 254 x 89 mm (10.00 x 3.50 in) |
| Rated Voltage | 230 VAC |
| Air Flow | 550 CFM (15.57 m3/min) |
| Max Static Pressure | 0.40 inH2O (10.16 mmH2O) |
| Speed (RPM) | 1650 |
| Noise Level (dBA) | 55 |
| Input Power (W) | 33 |
| Rated Current (A) | 0.14 |
| Bearing Type | Ball |
| Termination | 0.110 in Quick-Connect Terminals |
| Airflow Direction | Air exhaust over struts |
| Motor Type | Permanent split capacitor |
| Motor Protection | Thermal protection |
| Frame Material | Die-cast Aluminum |
| Impeller Material | UL94V-0 PBT Plastic |
| Insulation Class | Class B |
| Operating Temperature | -40...+70 °C (-40...+70 °C) |
