To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Mechatronics |
| Manufacturer Product Number | UF15KC23-BTHR |
| Description | AC Axial Fan; 172x150x55mm; 230 VAC; 293 CFM; 3400 RPM; Ball; QC Term |
| Datasheet | Download Datasheet |

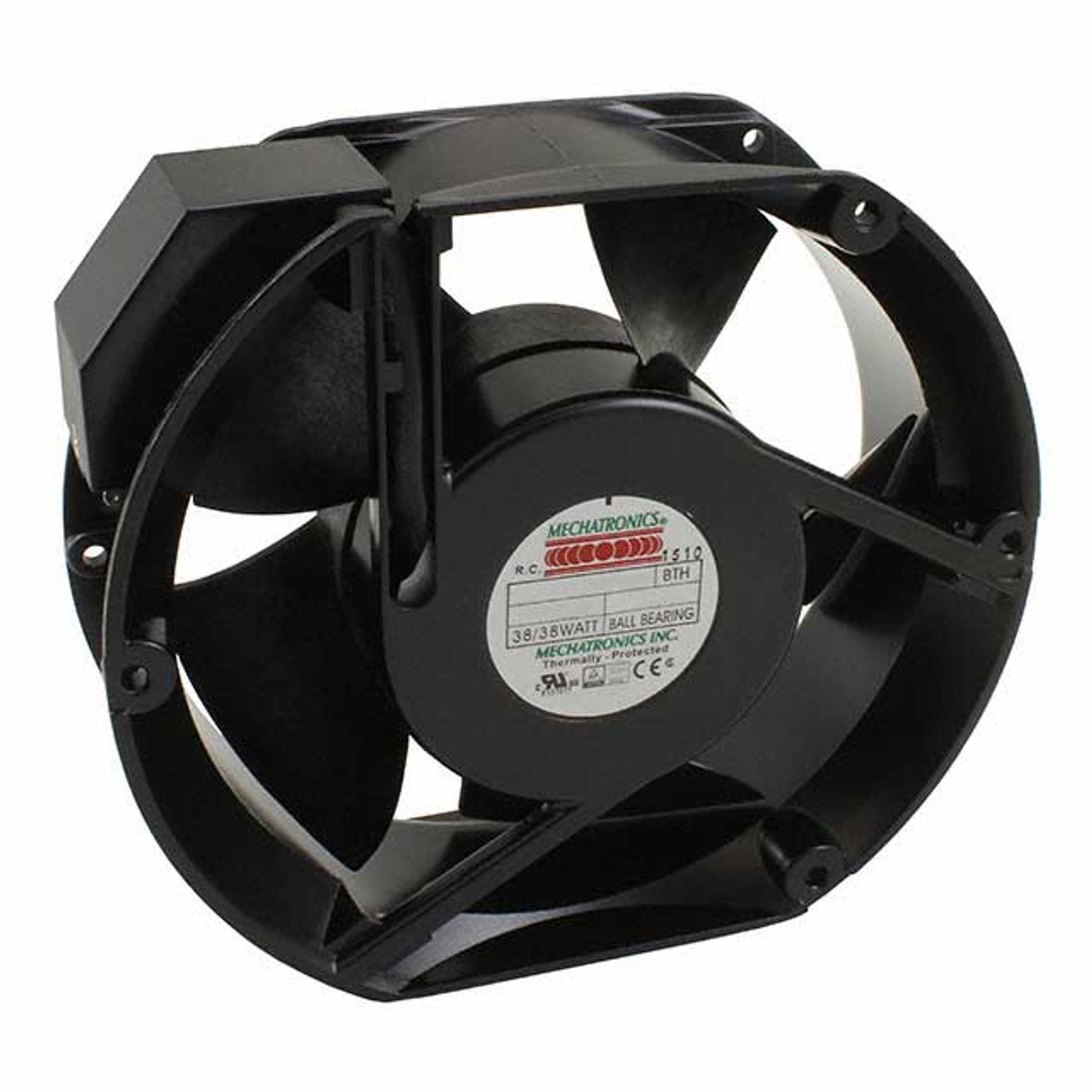

The Mechatronics UF15KC23-BTHR is a 172 x 150 x 55 mm 230 VAC axial fan moving 293 CFM (8.30 m³/min) at 3,400 RPM, with a maximum static pressure of 0.90 inH2O (22.86 mmH2O) and a noise level of 60 dBA (60 Hz figures).
It runs on ball bearings and connects with 0.110 in quick-connect terminals.
It draws 0.17 A / 38 W. It has a permanent split capacitor motor, with thermal protection. The frame is die-cast aluminum. The impeller is UL94V-0 PBT Plastic. It operates from -40 to +70 °C and can be stored from -40 to +70 °C.
| Category | |
| Manufacturer | Mechatronics |
| Model | UF15KC23-H |
