To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Mechatronics |
| Manufacturer Product Number | UF12AR12-BWLR |
| Description | AC Axial Fan; 120x120x38mm; 115 VAC; 75 CFM; 2300 RPM; Ball; Lead Wires |
| Datasheet | Download Datasheet |

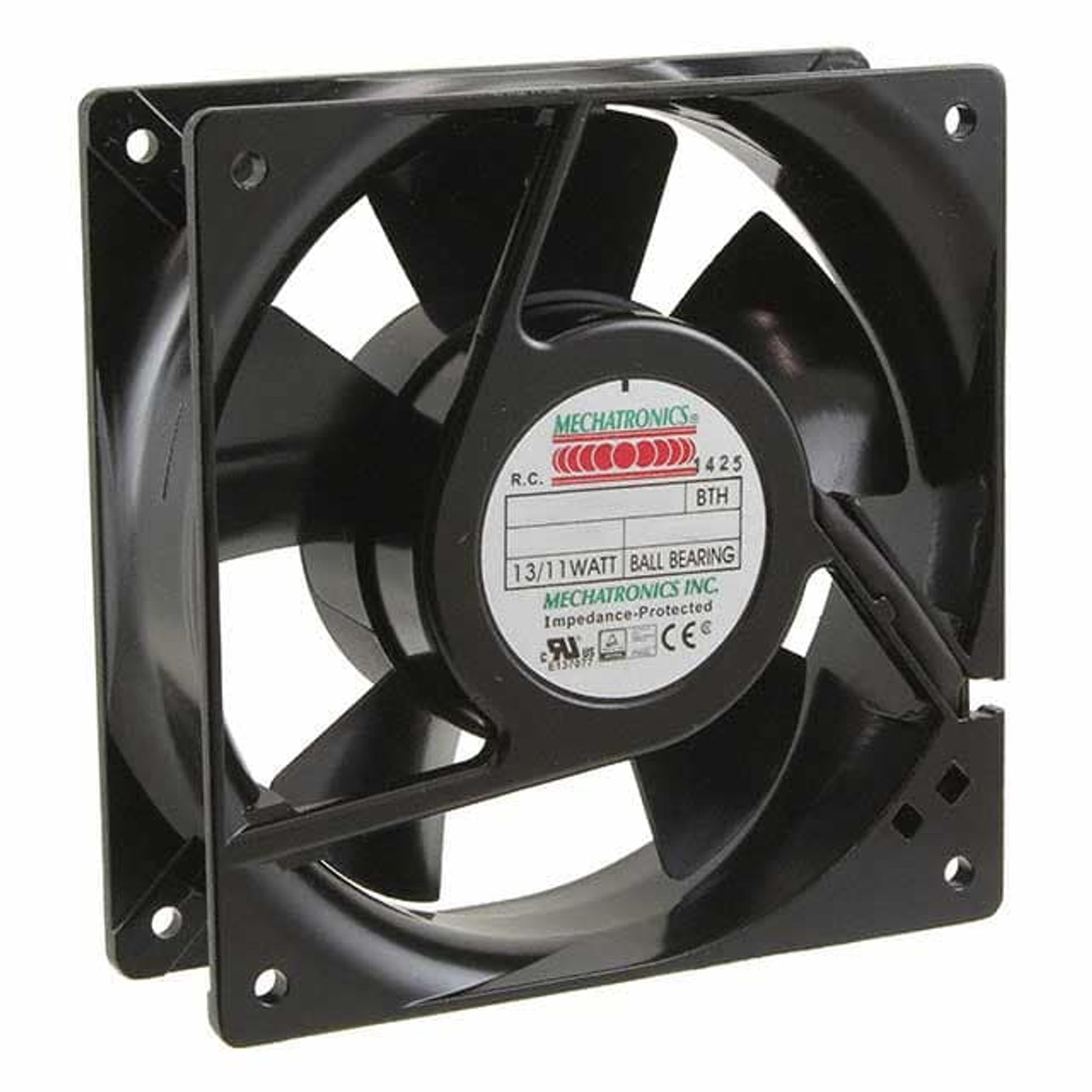

The Mechatronics UF12AR12-BWLR is a 120 x 120 x 38 mm 115 VAC axial fan moving 75 CFM (2.12 m³/min) at 2,300 RPM, with a maximum static pressure of 0.16 inH2O (4.06 mmH2O) and a noise level of 38 dBA (60 Hz figures).
It runs on ball bearings and connects with lead wires.
It draws 0.15 A / 11 W. It has a shaded-pole motor, with impedance protection. The frame is die-cast aluminum. The impeller is UL94V-0 PBT Plastic. It operates from -40 to +70 °C and can be stored from -40 to +70 °C.
| Category | |
| Manufacturer | Mechatronics |
| Model | UF12AR12-L |
