Product Description

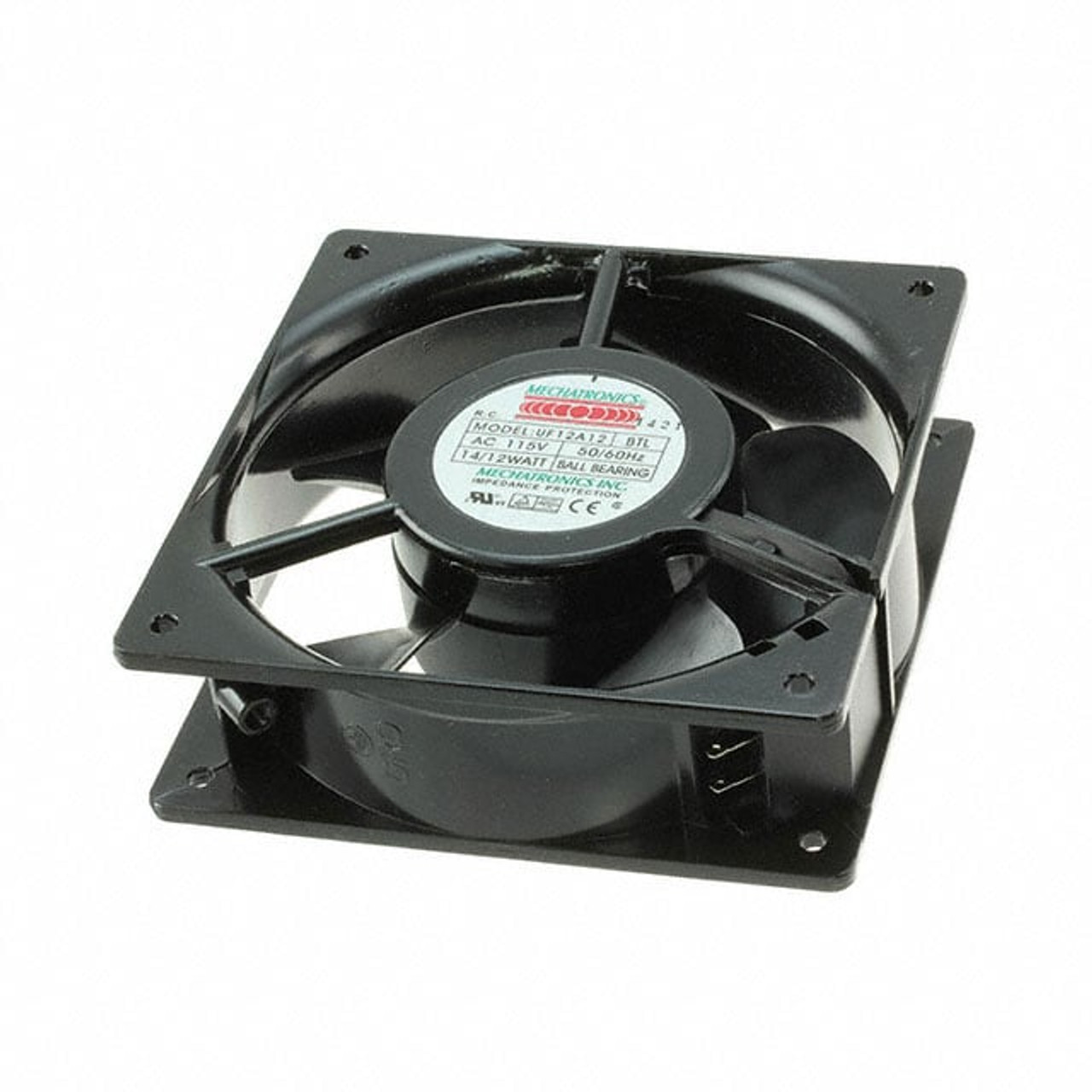

Description: AC Axial Fan • Voltage - Rated: 115VAC • Shape: Square • Frame Size: 120x120x38mm • Width: 38.00mm • Air Flow: 92.0 CFMN • Static Pressure: 0.280 in H2O (69.7 Pa) • Bearing Type: Ball Bearing • Noise: 42.0dB(A) • Power (Watts): 12.00W • RPM: 2750 RPM • Termination: 2 Terminals
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Voltage - Rated | 115VAC |
| Shape | Square |
| Frame Size | 120x120x38mm |
| Width | 38.00mm |
| Air Flow | 92.0 CFMN |
| Static Pressure | 0.280 in H2O (69.7 Pa) |
| Bearing Type | Ball Bearing |
| Fan Type | Tubeaxial |
| Noise | 42.0dB(A) |
| Power (Watts) | 12.00W |
| RPM | 2750 RPM |
| Termination | 2 Terminals |
| Ingress Protection | - |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Approval Agency | CE, cUL, UL |
| Weight | 1.2 lbs (544.3 g) |
