Product Description

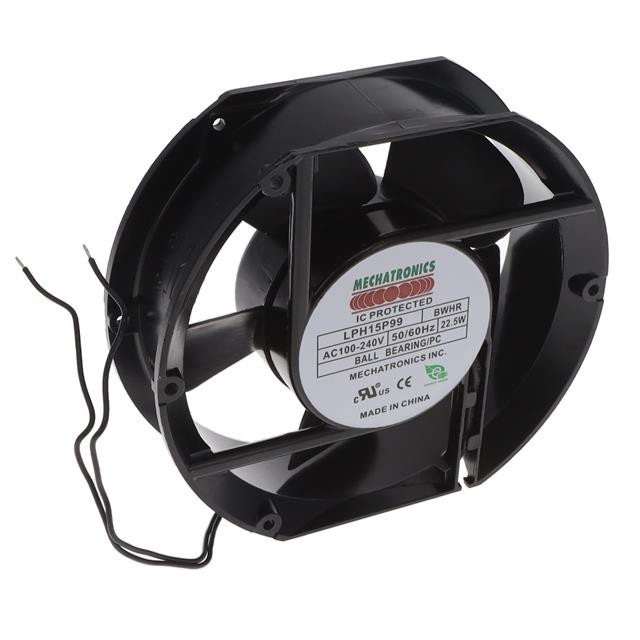

Mechatronics LPH15P99 Series AC Axial Fan; 172x152x51mm; Rect/Rnd; 100~240VAC; 55.0dB; 228.0 CFM (6.38m³/min); Ball
AC Axial Fan • Voltage - Rated: 100 ~ 240VAC • Shape: Rectangular/Rounded • Frame Size: 172x152x51mm • Air Flow: 228.0 CFM (6.38m³/min) • Static Pressure: 0.600 in H2O (149.5 Pa) • Bearing Type: Ball • Fan Type: Tubeaxial • Noise: 55.0dB(A) • Power (Watts): 22.50W • RPM: 3200 RPM • Termination: 2 Wire Leads
Product Information
| Manufacturer | Mechatronics |
| Product Category | Fans & Blowers |
| Product Sub Category | AC Axial Fan |
| Series | LPH15P99 Series |
| Catalog Part Number | LPH15P99-BWHR-PC |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Voltage - Rated | 100 ~ 240VAC |
| Shape | Rectangular/Rounded |
| Frame Size | 172x152x51mm |
| Air Flow | 228.0 CFM (6.38m³/min) |
| Static Pressure | 0.600 in H2O (149.5 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Auto Restart, Electronic Commutation (EC), Parylene Coating |
| Noise | 55.0dB(A) |
| Power (Watts) | 22.50W |
| RPM | 3200 RPM |
| Termination | 2 Wire Leads |
| Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Operating Temperature | - |
| Approval Agency | - |
| Weight | 1.6 lbs (725.7 g) |
