To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Mechatronics |
| Manufacturer Product Number | LPH15P99-BWHR |
| Description | EC Axial Fan; 172x152x51mm; 100-240 VAC; 228 CFM; 3200 RPM; Ball; Lead Wires |
| Datasheet | Download Datasheet |

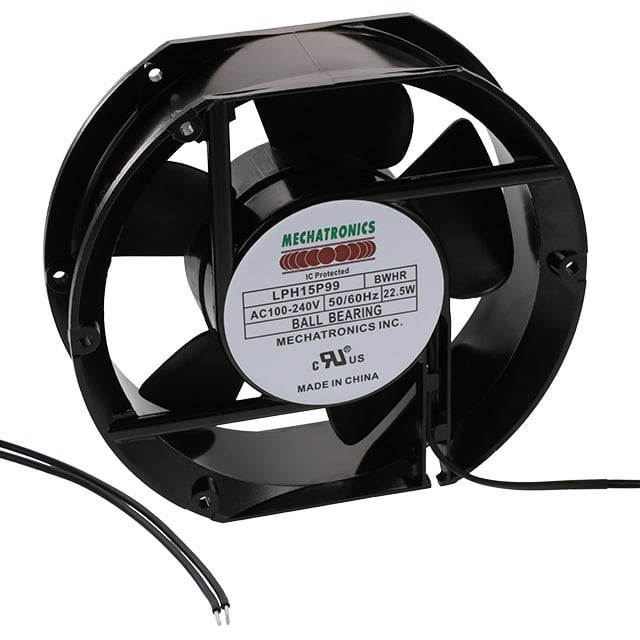

The Mechatronics LPH15P99-BWHR is a 172 x 152 x 51 mm 100-240 VAC EC axial fan moving 228 CFM (6.46 m³/min) at 3,200 RPM, with a maximum static pressure of 0.60 inH2O (15.24 mmH2O) and a noise level of 55 dBA.
It runs on ball bearings and connects with lead wires.
It draws 0.20 A / 22.5 W. It has a Brushless EC motor, with locked rotor protection. The frame is die-cast aluminum. The impeller is UL94V-0 PBT Plastic. It operates from -10 to +70 °C and can be stored from -20 to +70 °C.
| Category | |
| Manufacturer | Mechatronics |
