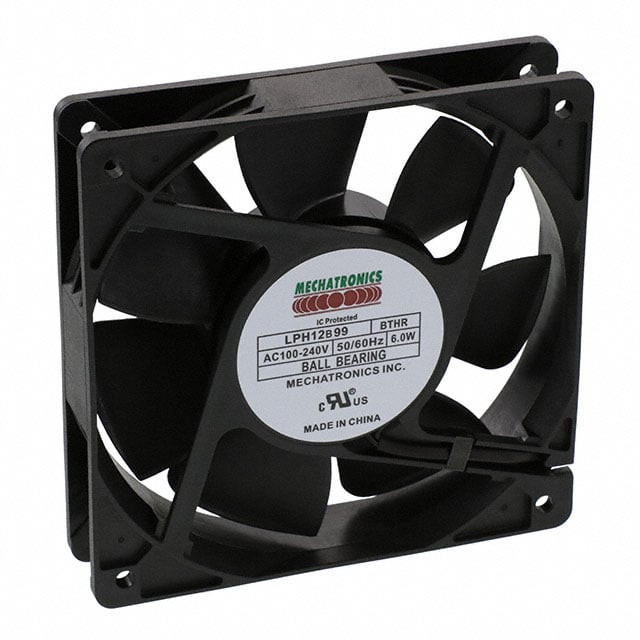

Mechatronics LPH12B99-BWHR-B1
| Manufacturer |
Mechatronics |
| Manufacturer Product Number |
LPH12B99-BWHR-B1 |
Product Description
Mechatronics LPH12B99 Series AC Axial Fan; 120x120x25mm; Square; 100 ~ 240VAC;44.0dB(A); 79.0 CFM (2.21m³/min); Ball
AC Axial Fan • Voltage - Rated: 100 ~ 240VAC • Shape: Square • Frame Size: 120x120x25mm • Air Flow: 79.0 CFM (2.21m³/min) • Static Pressure: 0.180 in H2O (44.8 Pa) • Bearing Type: Ball • Fan Type: Tubeaxial • Noise: 44.0dB(A) • Power (Watts): 6.00W • RPM: 3000 RPM • Termination: 3 Wire Leads
Specifications
| Product Attribute |
Attribute Value |
| Voltage - Rated | 100 ~ 240VAC |
| Shape | Square |
| Frame Size | 120x120x25mm |
| Air Flow | 79.0 CFM (2.21m³/min) |
| Static Pressure | 0.180 in H2O (44.8 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Auto Restart, Electronic Commutation (EC), Speed Sensor (Tach) |
| Noise | 44.0dB(A) |
| Power (Watts) | 6.00W |
| RPM | 3000 RPM |
| Termination | 3 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | - |
| Approval Agency | - |
| Weight | 0.325 lb (147.42 g) |
