Product Description

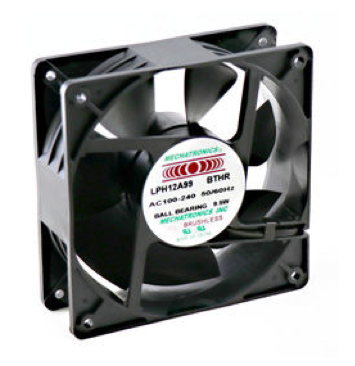

Mechatronics LPH12A99 Series AC Axial Fan; 120x120x38.5mm; Square; 100 ~ 240VAC;39.0dB(A); 86.0 CFM (2.41m³/min); Ball
AC Axial Fan • Voltage - Rated: 100 ~ 240VAC • Shape: Square • Frame Size: 120x120x38.5mm • Air Flow: 86.0 CFM (2.41m³/min) • Static Pressure: 0.200 in H2O (49.8 Pa) • Bearing Type: Ball • Fan Type: Tubeaxial • Noise: 39.0dB(A) • Power (Watts): 4.20W • RPM: 2500 RPM • Termination: 2 Wire Leads
Product Information
| Manufacturer | Mechatronics |
| Product Category | Fans & Blowers |
| Product Sub Category | AC Axial Fan |
| Series | LPH12A99 Series |
| Catalog Part Number | LPH12A99-BWLR |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Voltage - Rated | 100 ~ 240VAC |
| Shape | Square |
| Frame Size | 120x120x38.5mm |
| Air Flow | 86.0 CFM (2.41m³/min) |
| Static Pressure | 0.200 in H2O (49.8 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Auto Restart, Electronic Commutation (EC) |
| Noise | 39.0dB(A) |
| Power (Watts) | 4.20W |
| RPM | 2500 RPM |
| Termination | 2 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Approval Agency | CE, cUL, TUV, UL |
| Weight | - |
