To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Mechatronics |
| Manufacturer Product Number | LPH12A99-BWHR-B1+6 |
| Description | EC Axial Fan; 120x120x38mm; 100-240 VAC; 124 CFM; 3500 RPM; Ball; Tach+PWM; Lead Wires |
| Datasheet | Download Datasheet |

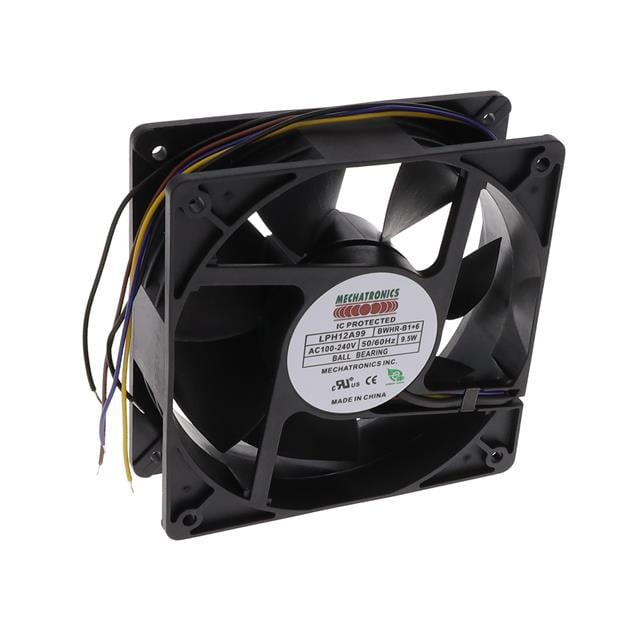

The Mechatronics LPH12A99-BWHR-B1+6 is a 120 x 120 x 38 mm 100-240 VAC EC axial fan moving 124 CFM (3.51 m³/min) at 3,500 RPM, with a maximum static pressure of 0.36 inH2O (9.14 mmH2O) and a noise level of 49 dBA.
It runs on ball bearings and connects with lead wires. It has a tachometer output and PWM speed control.
It draws 0.18 A / 9.5 W. It has a Brushless EC motor, with locked rotor protection. Frame and impeller are UL94V-0 PBT Plastic. It operates from -10 to +70 °C and can be stored from -20 to +70 °C.
| Category | |
| Manufacturer | Mechatronics |
| Model | LPH12A99-BWHR |
| Fan Type | Axial |
| Dimensions | 120 x 120 x 38 mm (4.72 x 4.72 x 1.52 in) |
| Rated Voltage | 100-240 VAC |
| Air Flow | 124 CFM (3.51 m3/min) |
| Max Static Pressure | 0.36 inH2O (9.14 mmH2O) |
| Speed (RPM) | 3500 |
| Noise Level (dBA) | 49 |
| Input Power (W) | 9.5 |
| Rated Current (A) | 0.18 |
| Bearing Type | Ball |
| Termination | Lead Wires |
| Airflow Direction | Air exhaust over struts |
| Motor Type | Brushless EC |
| Motor Protection | Locked rotor protection |
| Frame Material | UL94V-0 PBT Plastic |
| Impeller Material | UL94V-0 PBT Plastic |
| Operating Temperature | -10...+70 °C (-20...+70 °C) |
