Product Description

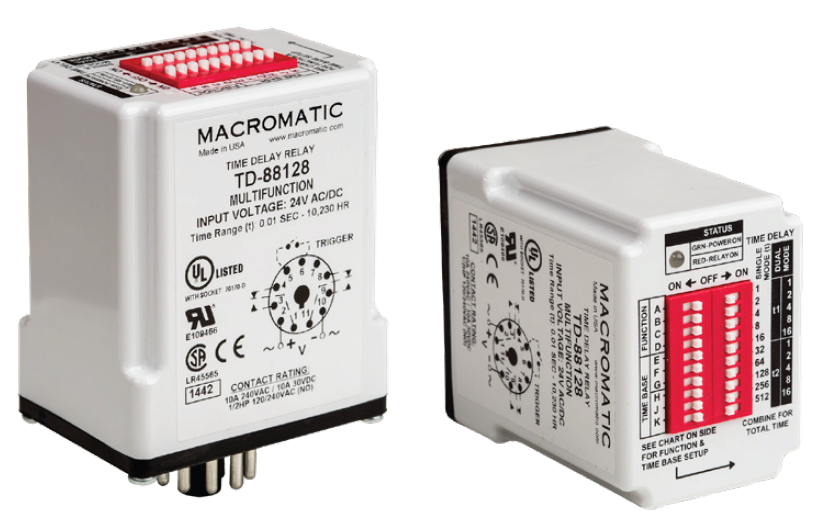

Description: Time Delay Relay • Multi-Function • Input Voltage: 240V AC • Timing Range: 50MS - 10,230 HR. • Mounting : Plug-in 11 Pin Round • Contact Configuration: 2C DPDT • Output Current: 10 Amps
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Input Voltage | 240V AC |
| Timing Range | 50MS - 10,230 HR. |
| Mounting | Plug-in 11 Pin Round |
| Contact Configuration | 2C DPDT |
| Output Current | 10 Amps |
| Voltage Tolerance | AC Operation: +10/-15% of nominal at 50/60 Hz. DC Operation: +10/-15% of nominal. |
| Load (Burden) | 2 VA |
| Setting Accuracy | Constant Voltage & Temperature w/i specifications: +0.1% of set time or +50ms, whichever is greater For Variable Voltage & Temperature w/i specifications: +1% of set time or +50ms, whichever is greater |
| Repeat Accuracy | Constant Voltage & Temperature w/i specifications: +0.1% of set time or +0.02 seconds, whichever is greater For Variable Voltage & Temperature w/i specifications: +1% of set time or +0.02 seconds, whichever is greater +1% of set time or +0.02 seconds, whichever is greater |
| Reset Time: | All Functions Triggered by a Control Switch: 0.04 Seconds All Other Functions: 0.1 Seconds |
| Start-up Time: | (Time from when power is applied until unit is timing) 0.05 Seconds for all units |
| Maintain Function Time: | (Time unit continues to operate after power is removed) 0.01 Seconds for all units |
| Insulation Voltage: | 2,000 volts |
| Temperature | Operating: -28o to 65oC (-18o to 149oF) Storage: -40o to 85oC (-40o to 185oF) |
| Output Contacts | DPDT 10A @ 240V AC/30V DC, 1/2HP @ 120/240V AC (N.O.), 1/3HP @ 120V AC (N.C.) B300 & R300; AC15 & DC13 |
| Life | Mechanical: 10,000,000 operations Full Load: 100,000 operations |
| Compatibility | Using a solid state switch to initiate the time sequence is acceptable. |
| Control Switch Triggered Units | Minimum required trigger switch closure time is 0.05 seconds. |
| Series Features |
| TD-8 Series PROGRAMMABLE | MULTI-FUNCTION, DIP-Switch | Digital-Set | |
| Series Description: The TD-881 Series offers the digital-set accuracy of DIP-switch setting as well as the flexible programmabil- ity of a multi-function and multi-time range relay. These products provide an easy and accurate method to se- lect any of 16 time delay functions and any time delay between 50ms and 10,230 hours (310 hours maximum for Dual Mode functions). Programming is accom- plished through the use of two 10-position DIP-switch- es. This product can literally replace hundreds of different catalog numbers, thereby reducing inventory requirements. |
|
