| Manufacturer | Macromatic |
| Model | TD-7 |
| Manufacturer Product Number | TD-72224 |
| Description | TDR; 0.05 s...999 h; Single Shot Falling Edge; 48V AC/DC; 2C DPDT |
| Datasheet | Download Datasheet |

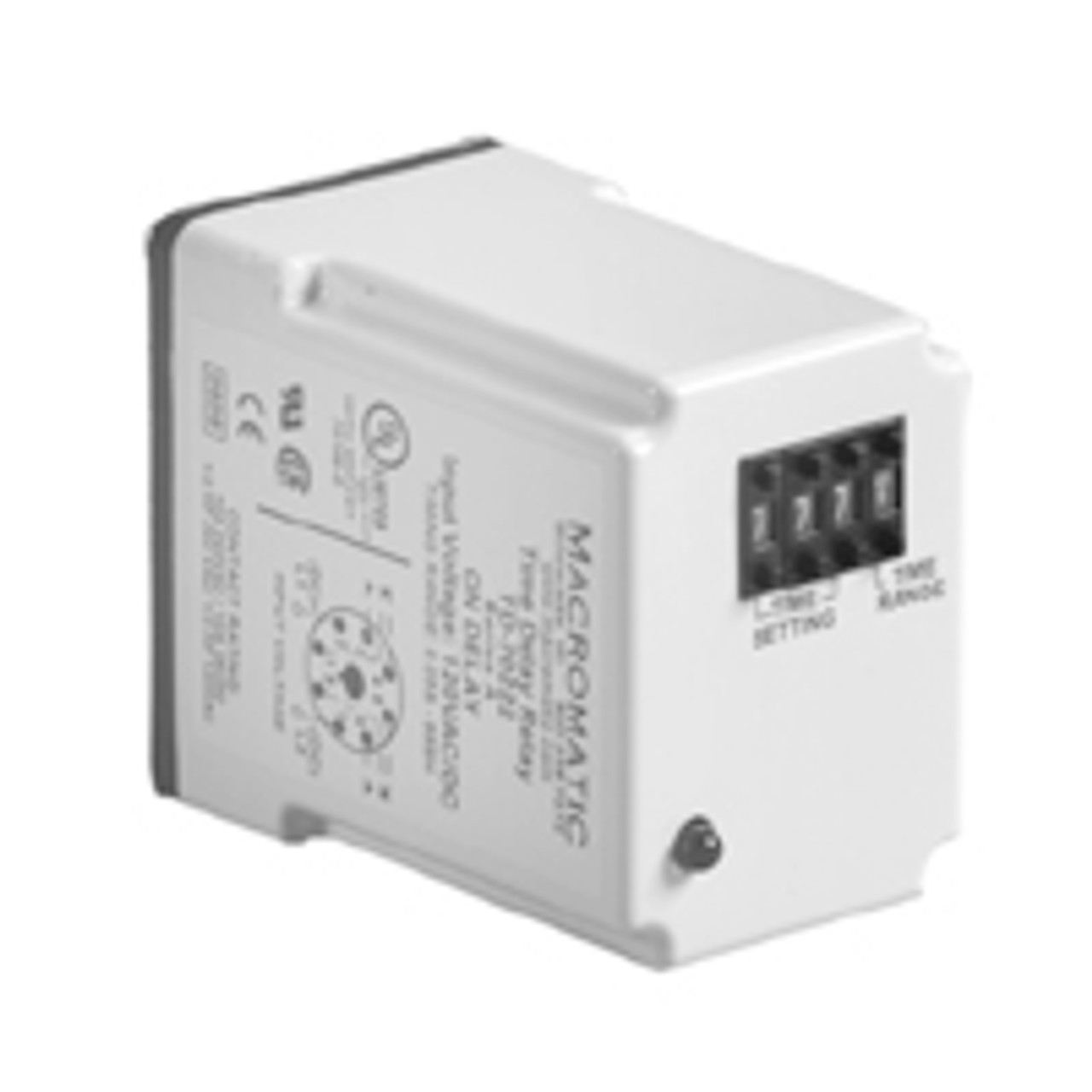

The Macromatic TD-72224 is a time delay relay with 2C DPDT output and rated 10 A at 240 V AC, 10 A at 30 V DC, driven by a 48V AC/DC input.
It is adjustable from 0.05 s to 999 h and set by pushbutton thumbwheels, digital set.
It is a Single Shot Falling Edge timer.
Upon application of control voltage, the time delay relay is ready to accept a trigger. When the trigger is applied, the output remains de-energized. Upon removal of the trigger, the output is energized and the time delay (t) begins. At the end of the time delay (t), the output is de-energized unless the trigger is removed and re-applied prior to time out (before time delay (t) elapses). Continuous cycling of the trigger at a rate faster than the time delay (t) will cause the output to remain energized indefinitely.
It is started by a control switch.
It has Socketable mounting and Plug In terminals.
| Category | |
| Manufacturer | Macromatic |
