Product Description
Description: Time Delay Relay • Delay on Break • Input Voltage: 12 VAC/VDC • Timing Range: 0.05 Sec. - 999 Hr. • Mounting : Plug-in 11 Pin Round • Contact Configuration: 2C DPDT • Output Current: 10 Amps • LED: Red LED. Refer to instruction sheet provided with product to determine code for relay & timing status.
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Input Voltage | 12 VAC/VDC |
| Timing Range | 0.05 Sec. - 999 Hr. |
| Mounting | Plug-in 11 Pin Round |
| Contact Configuration | 2C DPDT |
| Output Current | 10 Amps |
| LED | Red LED. Refer to instruction sheet provided with product to determine code for relay & timing status. |
| Function | Off Delay |
| Compatibility | Using a solid state switch to initiate the time sequence is acceptable. |
| Insulation Voltage | 2,000 volts |
| Life | Mechanical: 10,000,000 operations Full Load: 100,000 operations |
| Load (Burden) | 3 VA |
| Maintain Function Time | (Time unit continues to time after power is removed) 0.01 Seconds for all units |
| Output Contacts | DPDT 10A @ 240V AC/28V DC, 1/2HP @ 240V AC, 1/3HP @ 120V AC B300 & R300; AC15 & DC13 |
| Repeat Accuracy (constant voltage and temperature) | Constant Voltage & Temperature w/i specifications: +0.1% of set time or +0.02 seconds, whichever is greater For Variable Voltage & Temperature w/i specifications: +1% of set time or +0.02 seconds, whichever is greater |
| Reset Time | On Delay/Interval/Flasher: 0.1 Seconds Off Delay/Single Shot: 0.04 Seconds |
| Setting Accuracy | Constant Voltage & Temperature w/i specifications: +0.1% of set time or +50ms, whichever is greater For Variable Voltage & Temperature w/i specifications: +1% of set time or +50ms, whichever is greater |
| Start-up Time | (Time from when power is applied until unit is timing) 0.05 Seconds for all units |
| Temperature | Operating: -28o to 65oC (-18o to 149oF); Storage: -40o to 85oC (-40o to 185oF) |
| Initiating Units with Control Switch Triggers: | Timing sequence must be initiated only after input voltage is applied to unit. Minimum required trigger switch closure time is 0.1 seconds. |
| Voltage Tolerance | AC Operation: +10/-15% of nominal at 50/60 Hz., DC Operation: +10/-15% of nominal. |
| Series Features |
| TD-7 Series Time Ranger PROGRAMMABLE | MULTI-RANGE | Digital-Set |

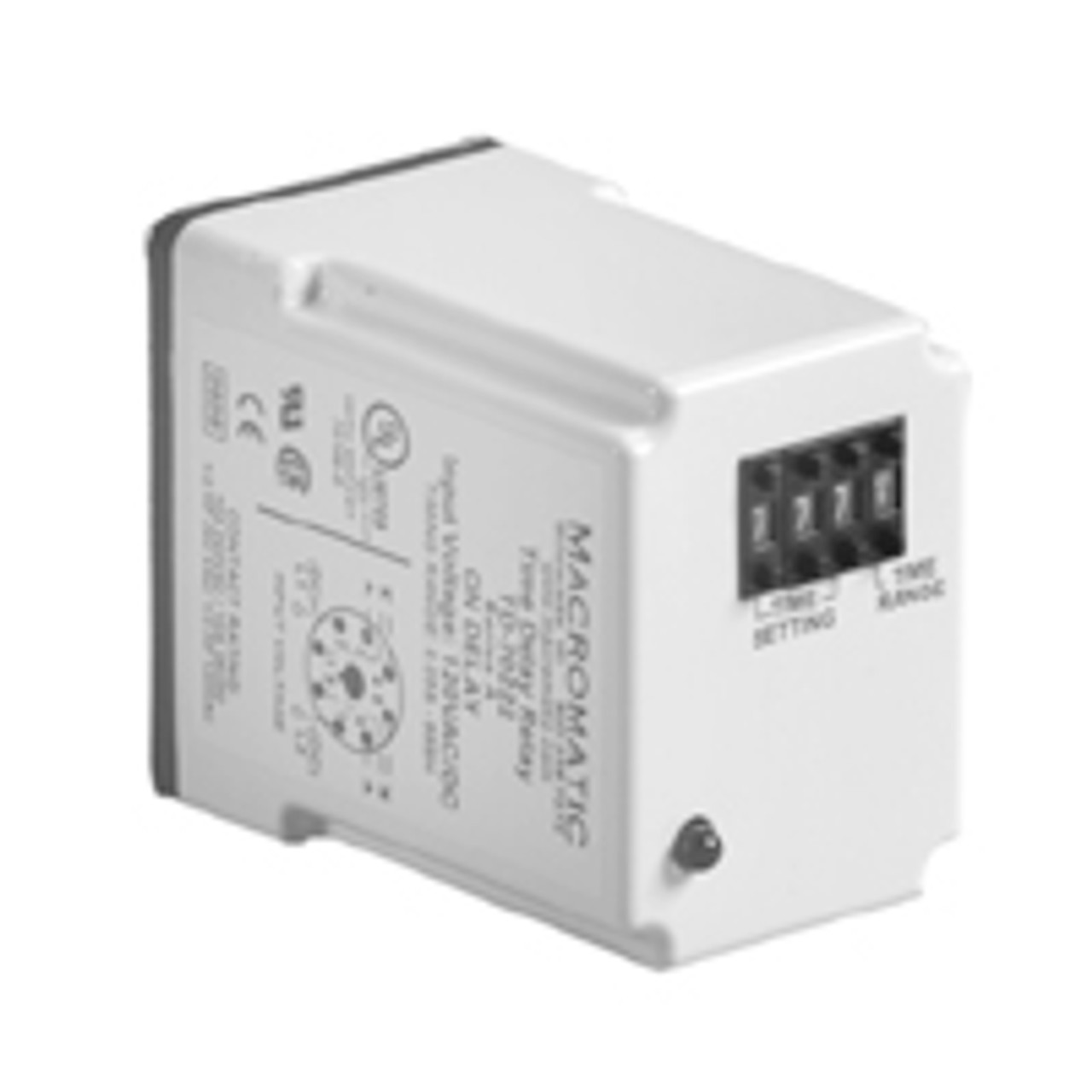

| Series Description: The TD-7 series of time delay relays offer an easy and accurate way to select any time delay between 50ms and 999 hours. Programming is accomplished by using a pushbutton thumbwheel to select one of seven built-in time ranges and three pushbutton thumbwheels to digitally set the time delay required. This method provides a greater setting accuracy than is found on other units with an analog potentiometer. An LED indicates timing mode and time out condition. Multi-function versions available. |
|
